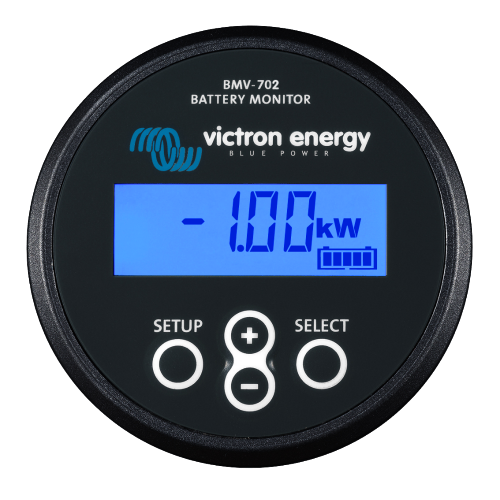

Victron Battery Monitor BMV-702 BLACK
Victron Battery Monitor BMV-702 BLACK
SKU:BAM010702200R
Brand: Victron
In stock
This is pre-order - Available in 7 – 10 days
Couldn't load pickup availability
Product Details
Product Details
Take full control of your battery system with the Victron BMV-702 BLACK Battery Monitor. Designed for 6.5–95 VDC systems, this high-precision monitor delivers real-time readings of voltage, current, ampere-hours consumed, and state of charge.
Built for reliability, it includes a 500 A/50 mV shunt in a protective enclosure and a 10 m RJ12 UTP cable for flexible installation. Track battery performance over time with historical data logging, including deepest discharge, average discharge, and cycle counts.
The clear digital display and intuitive four-button interface make setup and monitoring easy. VE.Direct compatibility and Bluetooth connectivity with VictronConnect allow remote monitoring and integration with GX devices.
Dimensions:
- Head Unit (Round Front): Diameter 68.7 mm
- Front Bezel: 69 x 69 mm
- Body Diameter: 52 mm
- Depth: 30.6 mm
- Shunt Enclosure: 120 x 79 x 8 mm
- Shunt Connection Bolts: M10
Compact, robust, and easy to install, the BMV-702 BLACK is perfect for off-grid systems, marine vessels, RVs, and backup power applications.
Product Specifications
Product Specifications
Electrical Specifications
- Supply Voltage Range: 6.5 – 95 VDC
- Current Draw (Backlight Off): < 4 mA
- Input Voltage Range, Auxiliary Battery: 6.5 – 95 VDC
- Battery Capacity (Ah): 1 – 9999 Ah
- Operating Temperature Range: -40 to +50°C (-40 to 120°F)
- VE.Direct Communication Port: Yes
- Relay: 60V / 1A normally open (function can be inverted)
Resolution & Accuracy (with included 500A shunt)
- Current Resolution: ± 0.01A
- Voltage Resolution: ± 0.01V
- Amp Hours Resolution: ± 0.1 Ah
- State of Charge (0 – 100%): ± 0.1%
- Time to Go: ± 1 min
- Temperature Resolution: ± 1°C/°F (with optional sensor)
- Current Measurement Accuracy: ± 0.4%
- Voltage Measurement Accuracy: ± 0.3%
Monitoring & Programming
- Standard Displays: Voltage, current, power, ampere-hours consumed, state of charge, and remaining time.
- Midpoint Voltage Monitoring: Dedicated feature to monitor battery bank health by measuring the voltage halfway along a series string to detect cell or battery failure.
- Auxiliary Input Functionality: Measures voltage of a second battery (e.g., starter battery), battery temperature, or midpoint voltage.
- History Storage: Stores a wide range of historical events to evaluate usage patterns and battery health.
- Visual/Audible Alarms: Fully programmable alarms for voltage, state of charge, and more.
- Bluetooth Connectivity: Compatible with the VE.Direct Bluetooth Smart dongle (sold separately) for wireless monitoring and setup via smartphones.
Installation & Dimensions
- Installation Type: Flush mount
- Front Diameter: 63 mm
- Front Bezel: 69 x 69 mm (2.7 x 2.7 inch)
- Body Diameter: 52 mm (2.0 inch)
- Body Depth: 31 mm (1.2 inch)
- Shunt Connection Bolts: M10 (0.3937 inch)
- Protection Category: IP55 (not intended for outdoor use)
Included Accessories
- Shunt: 500A / 50mV with quick connect PCB.
- RJ12 Cable: 10-meter 6-core UTP cable.
- Battery Cable: 2-meter cable with 1A slow-blow fuse for '+' connection.
- Mounting Hardware: Separate front bezel (square or round appearance), securing ring for rear mounting, and screws for front mounting.
Standards & Safety
- Safety: EN 60335-1
- Emission / Immunity: EN 55014-1 / EN 55014-2
- Automotive: ECE R10-4 / EN 50498
