Victron Battery Monitor BMV-700H

Name: Victron Battery Monitor BMV-700H
Brand: Victron
SKU: BAM010700100
Price: 488.00 GBP
Availability: InStock

SKU:BAM010700100

Brand: Victron

Tracks key battery performance metrics with high accuracy. Includes a 500 A shunt for use with large battery banks. Programmable alarm relay helps prevent battery damage. Optional Bluetooth support for convenient configuration. Historical data logging supports long-term maintenance planning.

In stock

This is pre-order - Available in 7 – 10 days

£488.00 GBP

Sale Sold out

Product Details

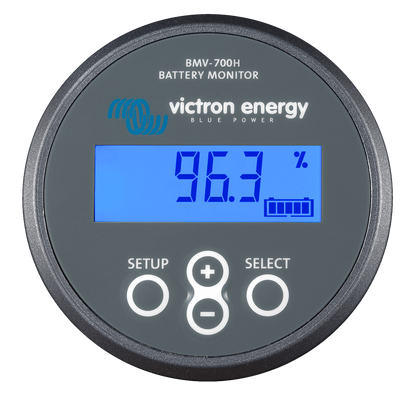

The Victron Battery Monitor BMV-700H is a precise and reliable tool designed to help you keep control of your high voltage battery system. Built for demanding applications, it offers accurate tracking of essential information so you can protect your power investment. It monitors current, voltage, state of charge, time to go, and historical performance. This means you can make informed decisions about energy usage and plan maintenance before issues appear.

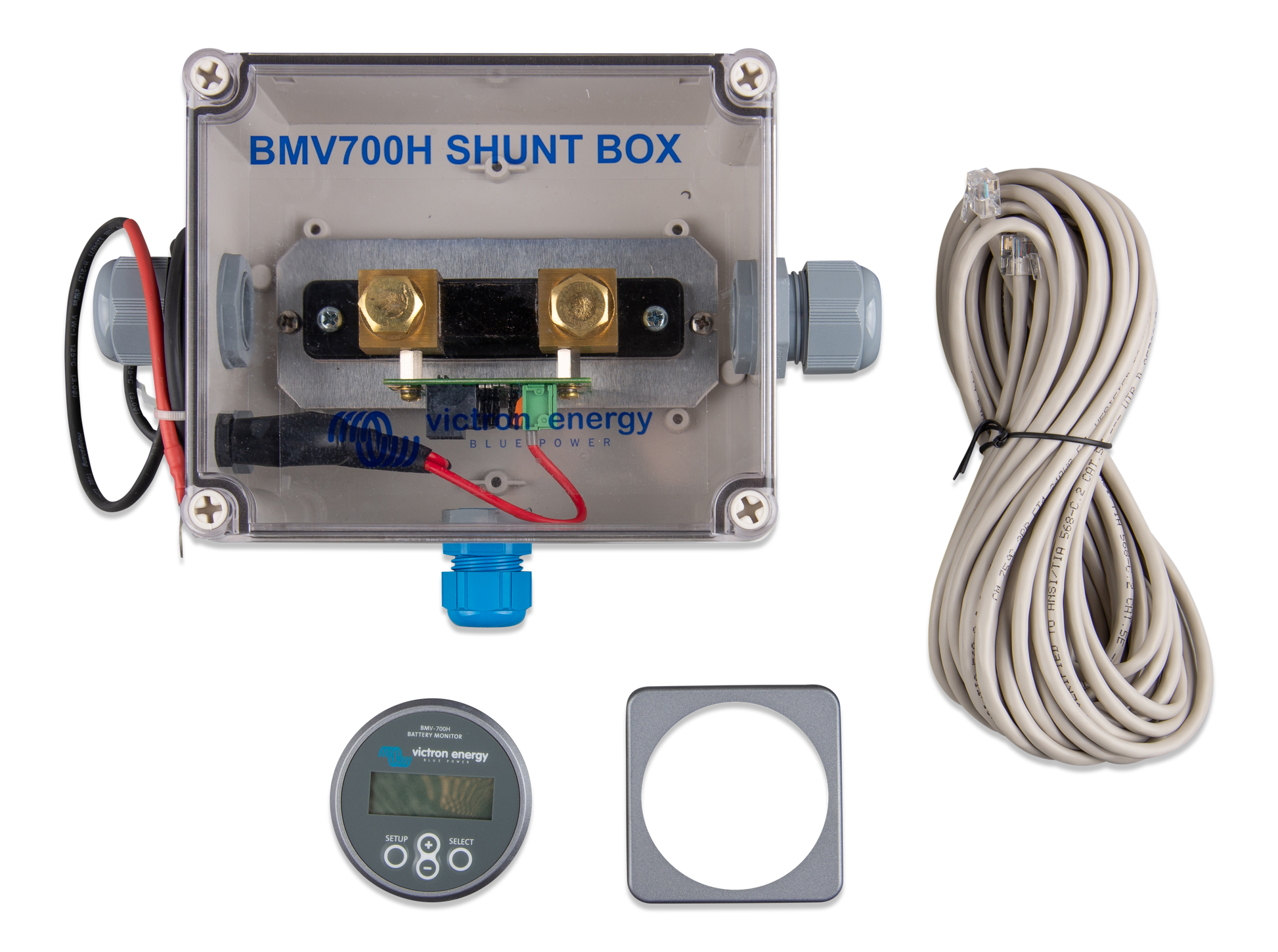

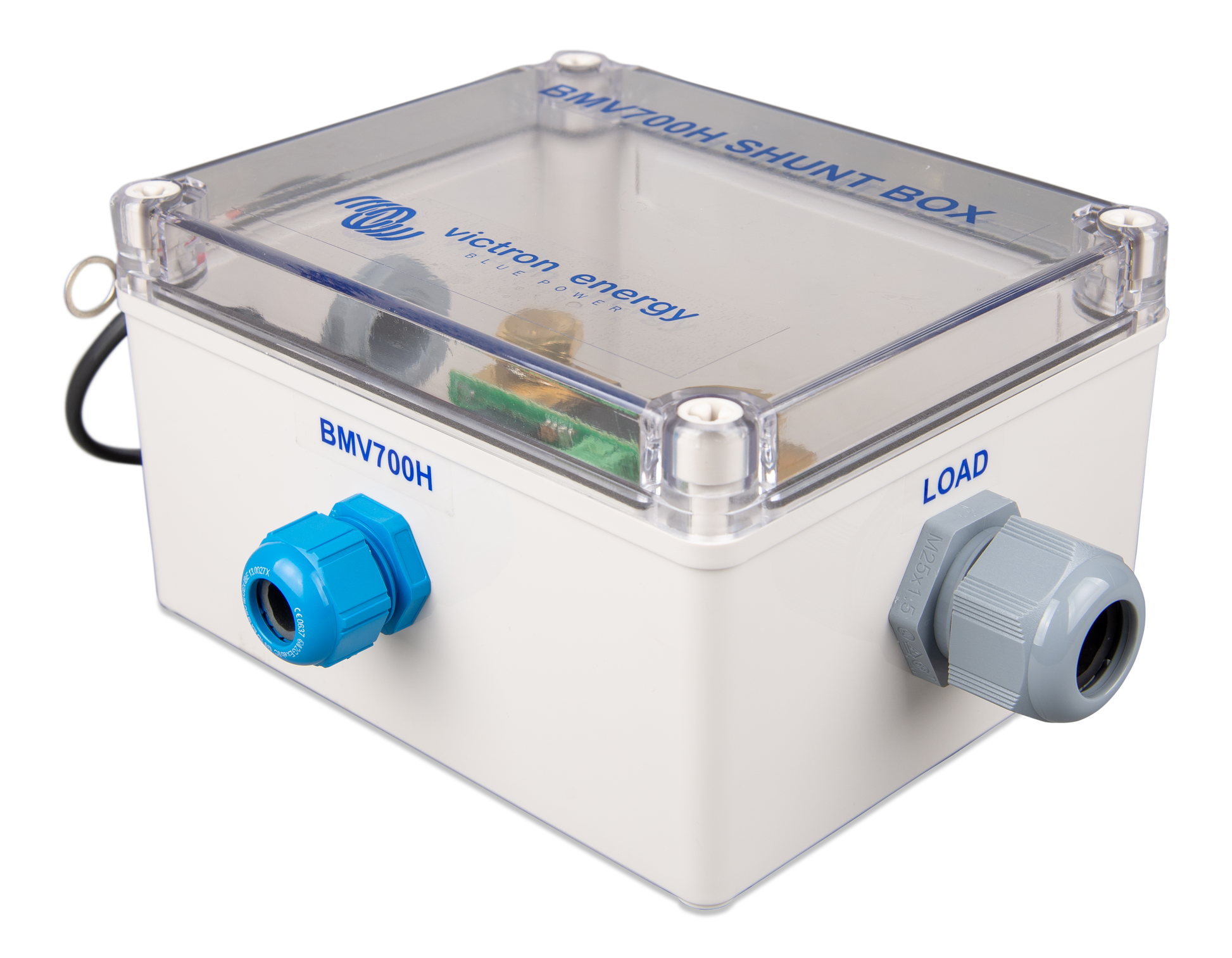

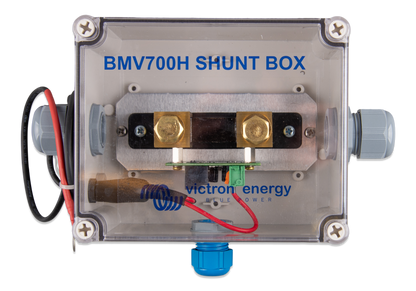

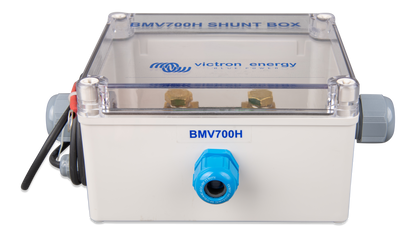

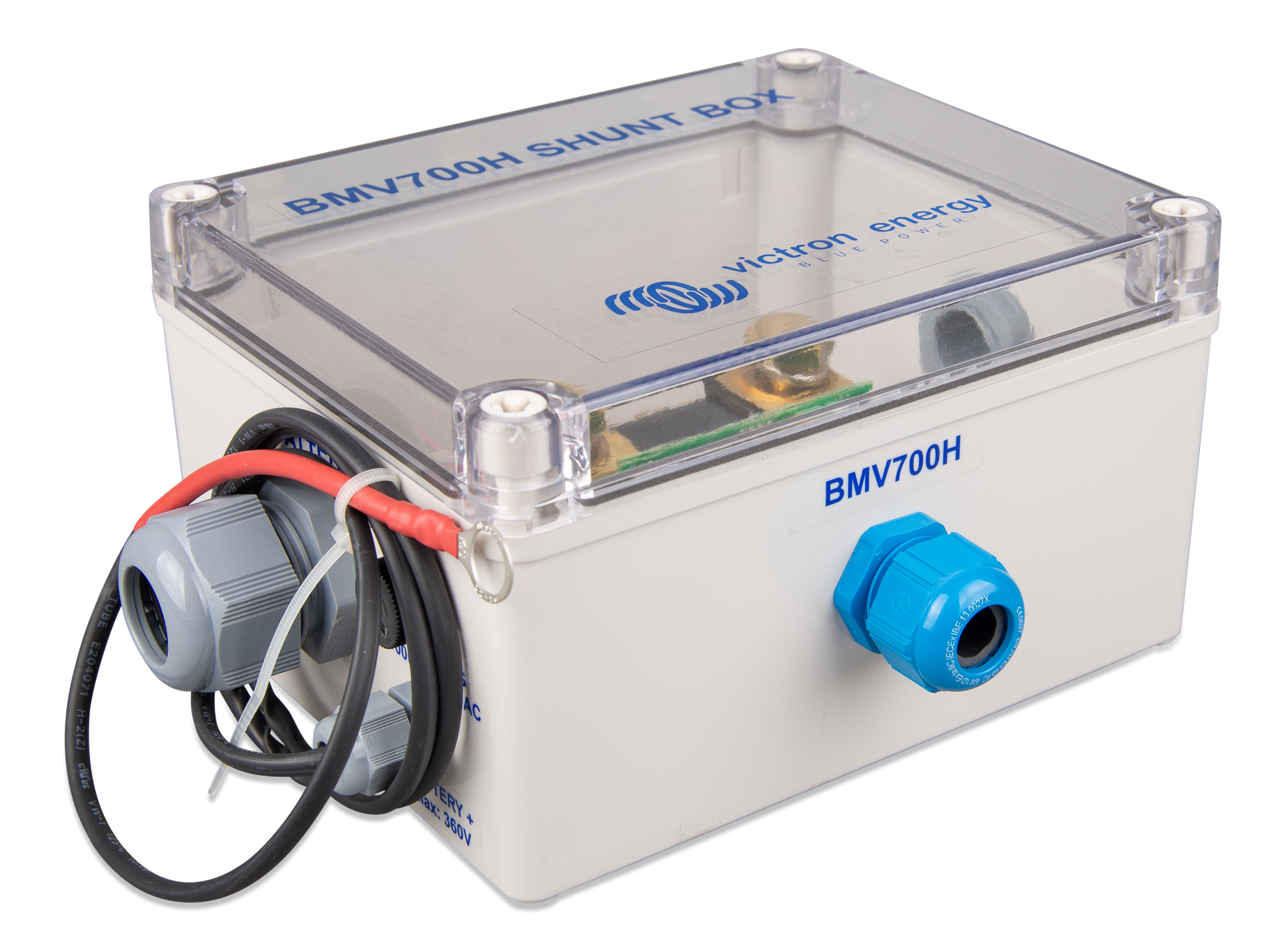

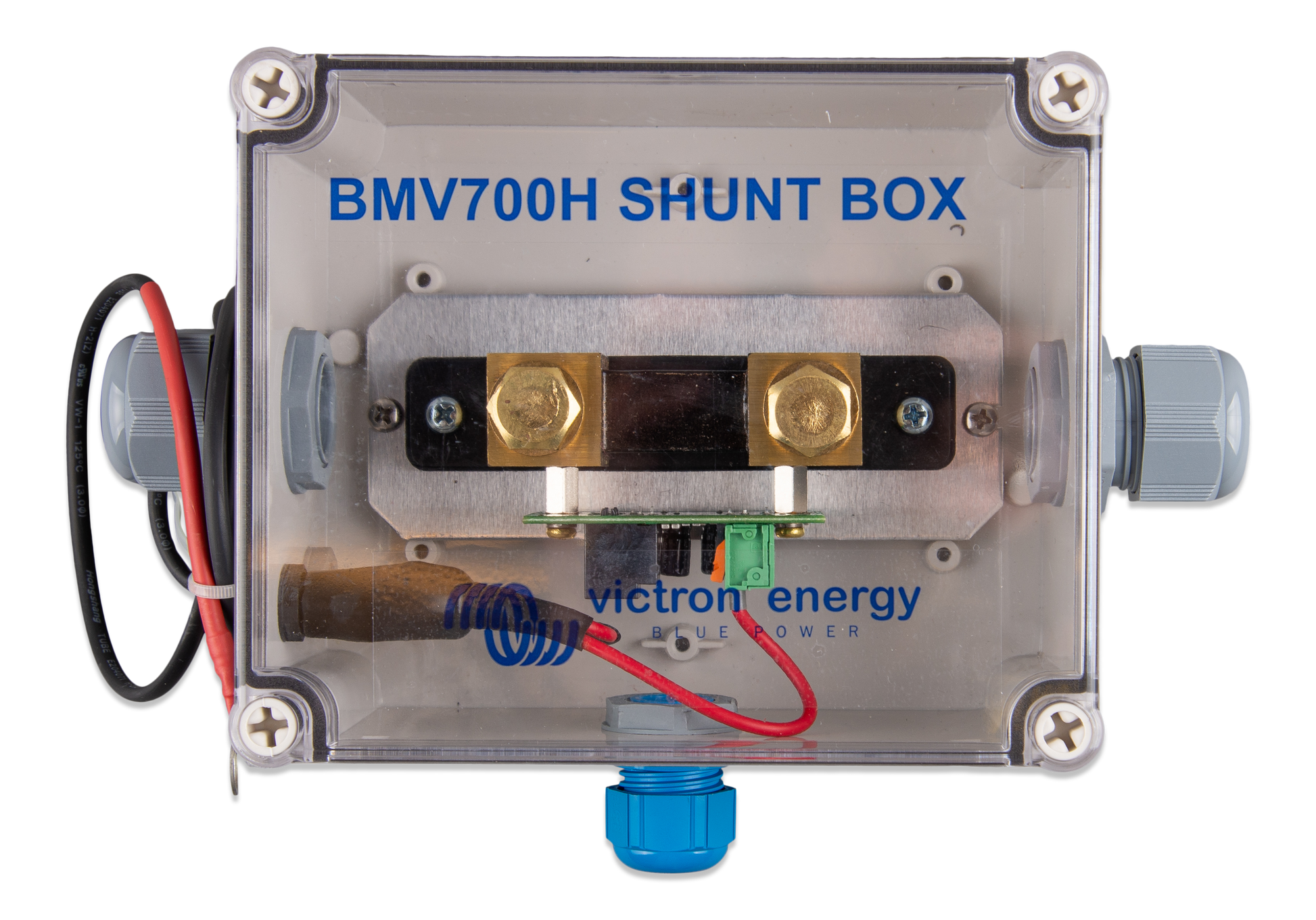

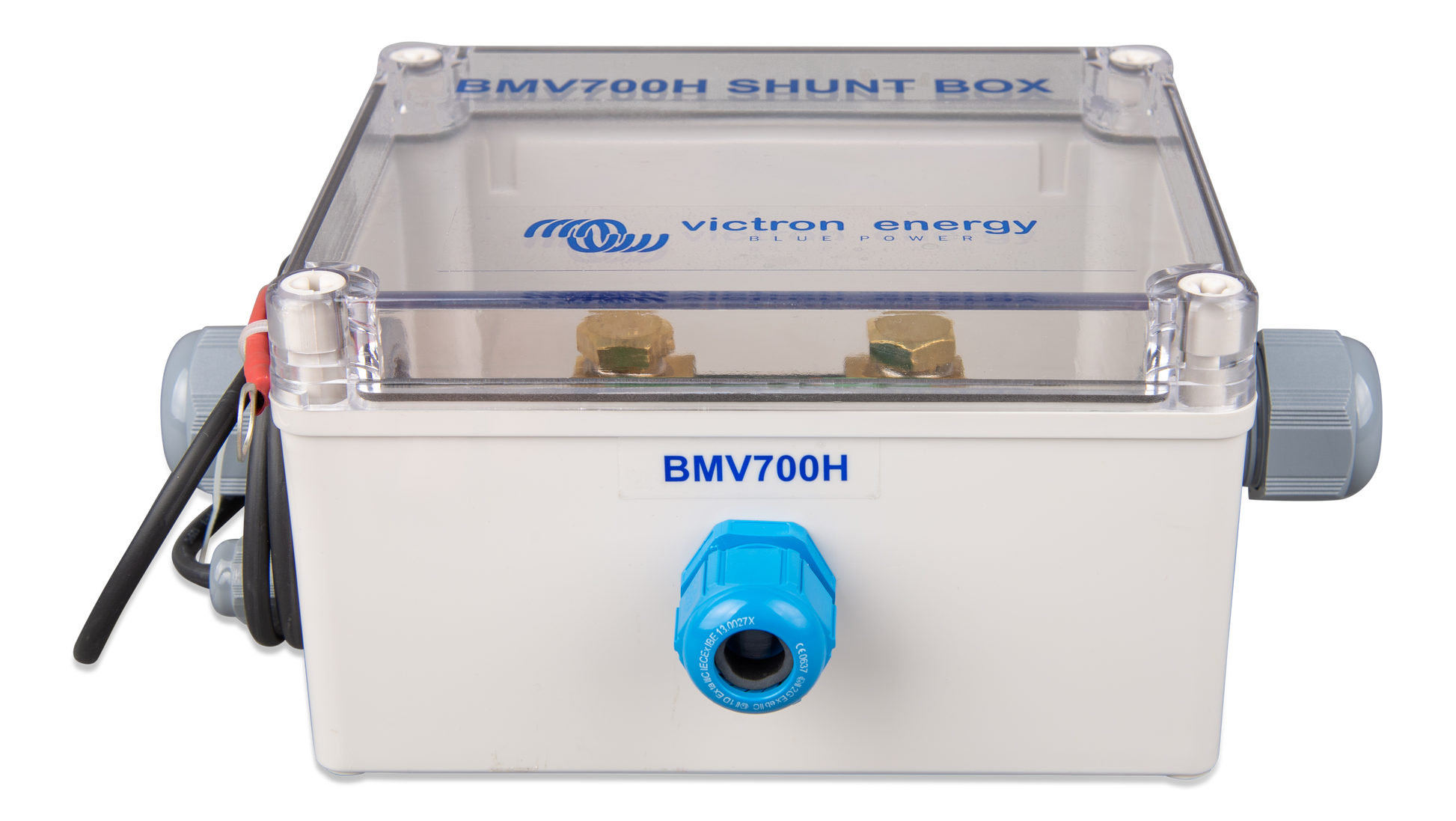

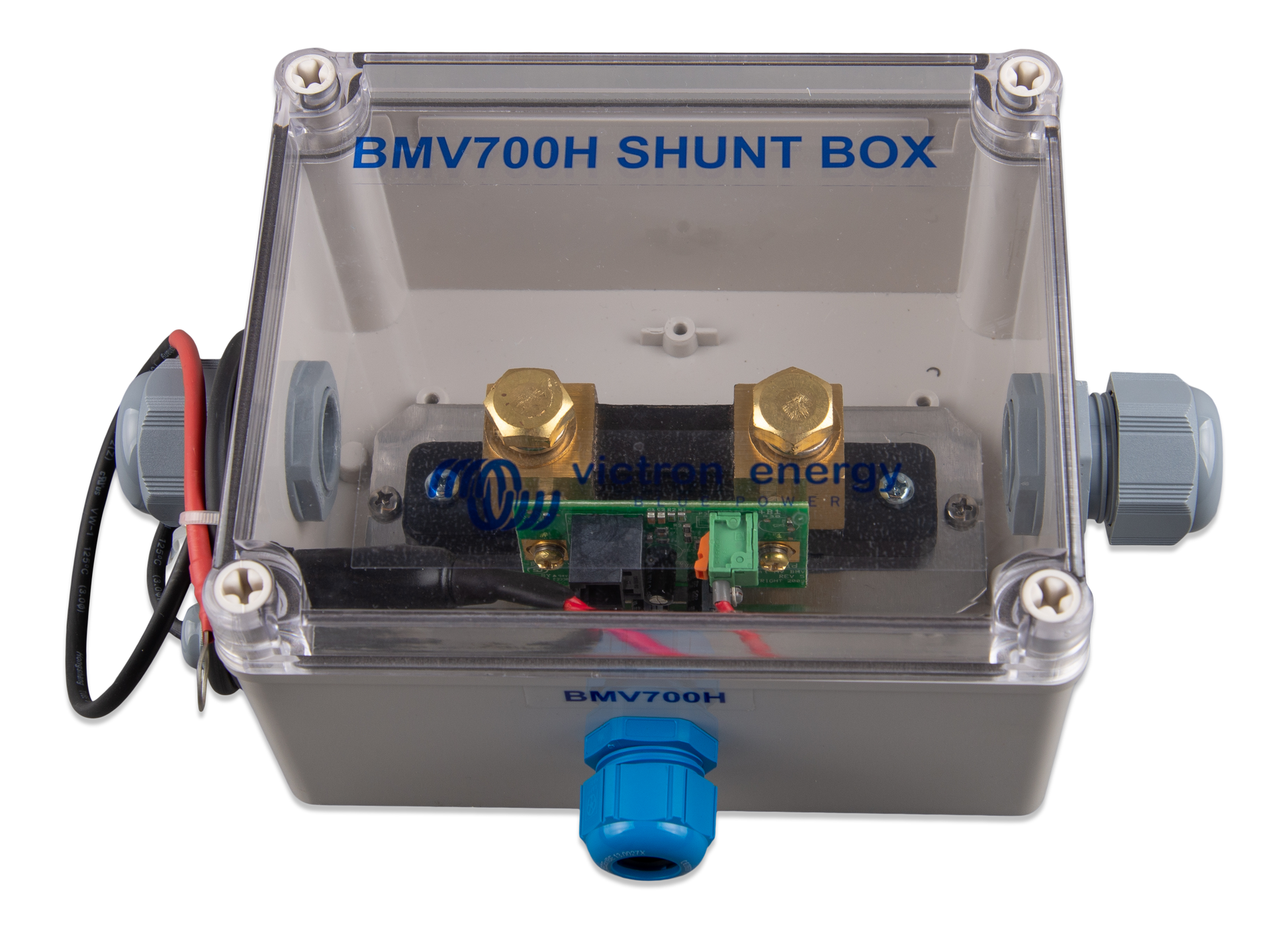

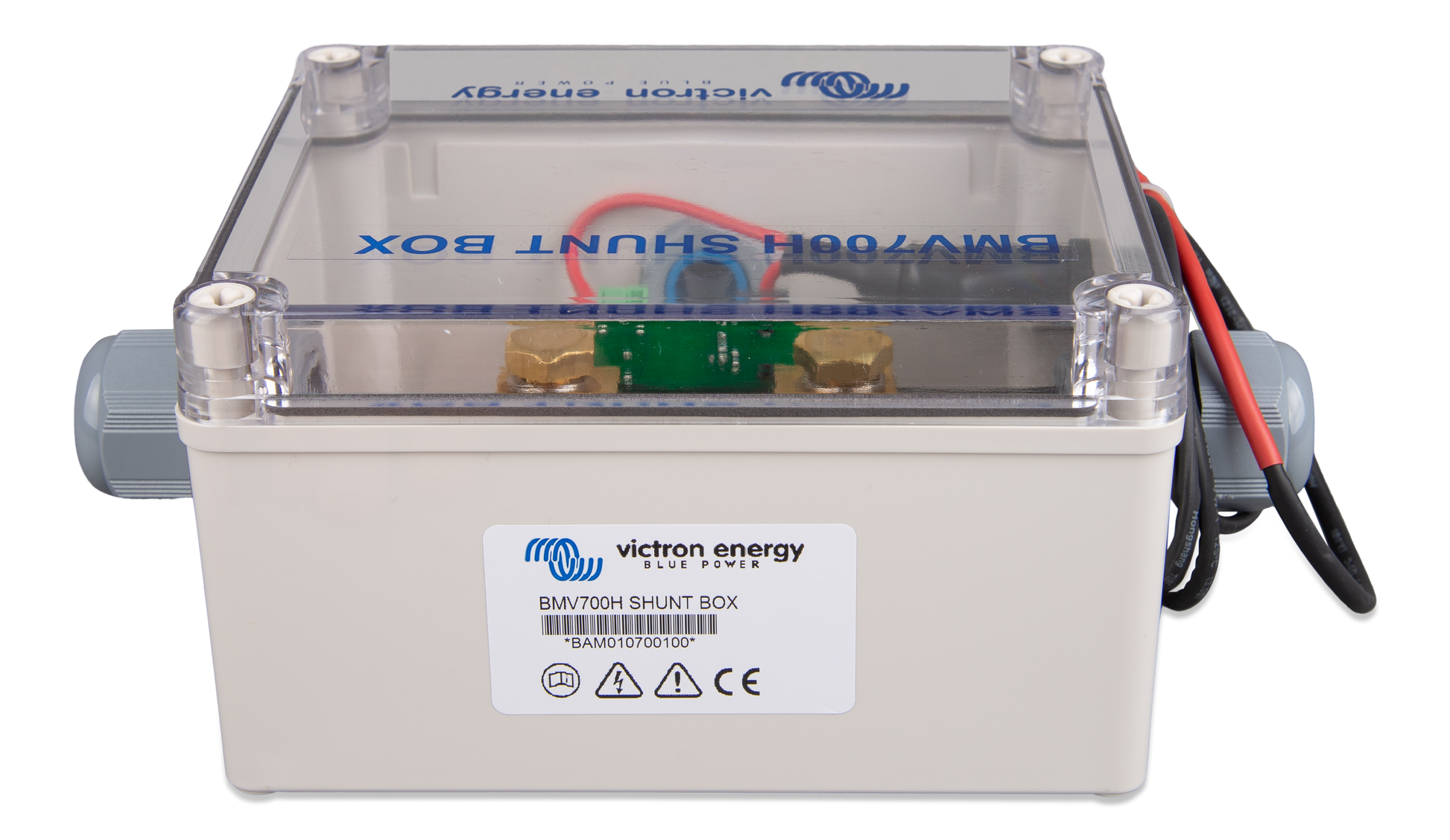

The unit is supplied with a 500 A shunt, allowing it to handle sizeable battery banks found in industrial, marine, and off-grid systems. The clear display presents data in a simple layout, making it suitable for both experienced installers and trade professionals. A programmable relay can start a generator or trigger an alarm when conditions reach predefined limits. This feature helps avoid deep discharge or overcharge, both of which shorten battery life.

Installation is straightforward thanks to a compact housing and a single cable connecting the monitor to the shunt. Power consumption within the unit is low, reducing strain on the system and supporting long-term monitoring. Optional accessories include a Bluetooth Smart dongle, enabling pairing with the Victron Connect app. This offers remote access to real-time readings and makes configuration quick and intuitive.

The BMV-700H supports battery banks with voltage ranges higher than those handled by standard monitors. This makes it suitable for high voltage systems often found in renewable energy solutions and specialised industrial environments. By logging historical data, the monitor provides insights into battery performance trends, helping users spot inefficiencies.

Built to Victron Energy’s high standards, the BMV-700H integrates easily into existing system setups. It offers longevity, accuracy, and flexibility. Whether you are planning a new project or upgrading an existing installation, this monitor provides peace of mind that your power storage is performing as it should.

Product Specifications

Key Monitoring Capabilities

Real-Time Data: Displays battery voltage, current, and power consumption in Watts.

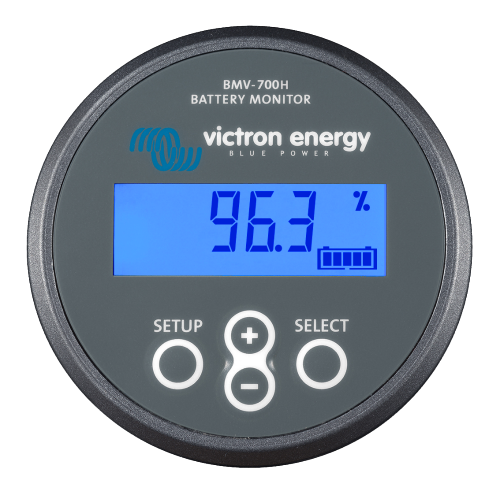

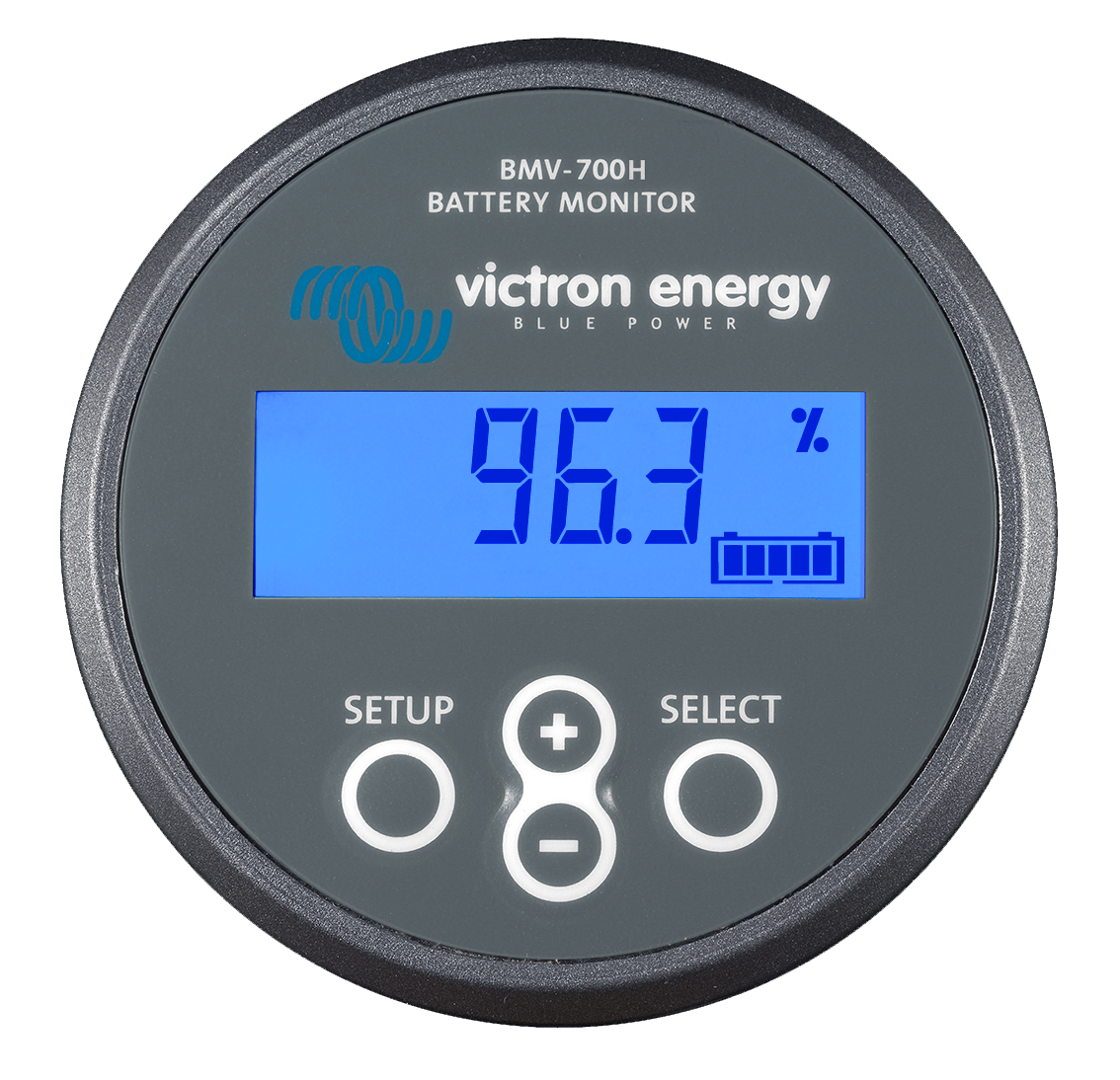

State of Charge: Shows remaining battery capacity as a percentage (0–100%).
Time-to-Go: Provides an estimate of how long the battery will last at the current rate of discharge.
Ampere-Hours Consumed: Tracks total energy usage.
Historical Data: Stores a wide range of historical events used to evaluate usage patterns and overall battery health.

Technical Specifications

Supply Voltage Range: 60 – 385 VDC
Current Draw (Backlight Off): < 4 mA
Battery Capacity (Ah): 1 – 9999 Ah
Operating Temperature Range: -40°C to +50°C (-40°F to 120°F)
Programmable Relay: 60V / 1A normally open (function can be inverted) to manage non-critical loads or trigger a generator.
VE.Direct Communication Port: Built-in port for wired or wireless (via optional Bluetooth dongle) monitoring and configuration.

Resolution & Accuracy (with included 500A shunt)

Current Resolution: ± 0.01 A
Voltage Resolution: ± 0.01 V
Amp Hour Resolution: ± 0.1 Ah
State of Charge Resolution: ± 0.1%
Time-to-Go Resolution: ± 1 minute
Current Measurement Accuracy: ± 0.4%
Voltage Measurement Accuracy: ± 0.3%

Installation & Mechanical

Mounting Type: Flush mount
Body Diameter: 52 mm (2.0 inch)
Body Depth: 31 mm (1.2 inch)
Front Diameter: 63 mm
Front Bezel Dimensions: 69 x 69 mm (2.7 x 2.7 inch)
Shunt Connection Bolts: M10 (0.3937 inch)
Protection Category: IP55 (Not intended for outdoor use)
System Compatibility: Suitable for systems with grounded negative only (battery monitor is not isolated from the shunt).

Included Components
