Victron Battery Indicator Panel (M8 eyelet connector / 30A ATO fuse)
Victron Battery Indicator Panel (M8 eyelet connector / 30A ATO fuse)
SKU:BPC900110114
Brand: Victron
Low stock: 4 left
Couldn't load pickup availability
Product Details
Product Details

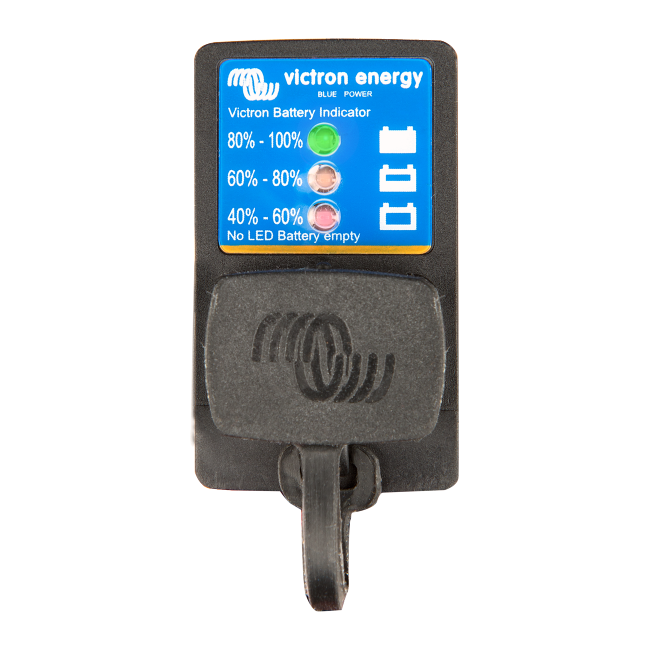

The Victron Battery Indicator Panel (M8 eyelet connector / 30A ATO fuse) is an accessory designed for use with Victron's Blue Smart and Blue Power IP65 chargers. It is suitable for 12V lead-acid batteries, including flooded, GEL, and AGM types.
This compact device connects directly to the battery via M8 eyelet connectors and includes a 30A ATO fuse for protection. The indicator provides a clear visual status of the battery's charge level:
- Green light: Battery is 80%-100% charged
- Orange light: Battery is 60%-80% charged
- Red light: Battery is 40%-60% charged
- No light: Battery is less than 40% charged; immediate charging recommended to prevent sulfation
The indicator operates with a voltage range of 6-15V and has a low current drain of 0.9mA, ensuring minimal impact on the battery's charge.
Specifications:
- Voltage Range: 6-15V
- Maximum Current: 30A
- Cable Length: 1.5m
- Cable Diameter: 3.3mm² (AWG12)
- Panel Cut-Out: 39x22mm
- Size: 45x26x50mm
- Battery Connection Type: M8 Eyelet connectors
- Fuse: 30A ATO fuse
- Weight: 0.17kg
- Protection Category: IP65
This indicator is an essential tool for maintaining the health of your battery, providing immediate feedback on its status and helping to ensure reliable performance.
Product Specifications
Product Specifications
Battery Compatibility
- Battery Voltage: 12V
- Chemistry Types: Lead-acid only (Flooded, GEL, AGM)
Status Indications: The panel uses color-coded LEDs to show the battery's charge level. For the most accurate reading, it is recommended to wait approximately 30 minutes after battery use for the system to reach a steady state.
- Green Light: Battery 80% – 100% (Charging is not necessary)
- Orange Light: Battery 60% – 80% (Battery can be charged)
- Red Light: Battery 40% – 60% (Battery needs charging)
- No Light: Battery < 40% (Charge immediately to prevent damage from sulfation)
Technical Specifications
- Voltage Range: 6 – 15 V
- Back Current Drain: 0.9 mA
- Maximum Current: 30 A
- Length of Cable: 1.5 m
- Cable Diameter: 3.3 mm² (AWG12)
- Battery Connection Type: M8 Eyelet connectors
- Fuse: 30A ATO fuse
- Weight: 0.17 kg
- Protection Category: IP65
Mechanical Specifications
- Panel Cut-out: 39 x 22 mm
- Overall Size: 45 x 26 x 50 mm
