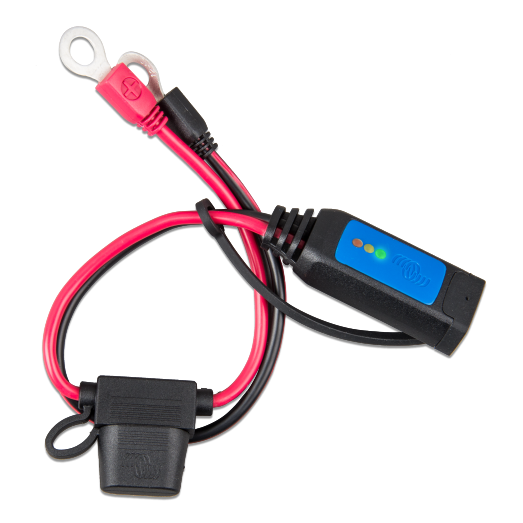

Victron Battery Indicator Eyelet (M8 eyelet / 30A ATO fuse)

The Victron Battery Indicator Eyelet (SKU BPC900120114) is a compact and practical accessory for 12 V lead acid batteries. It provides a clear visual indication of the battery’s charge level and is designed for installations where quick status checks are needed without fitting a full monitoring system.

The unit connects directly to the battery using sturdy M8 eyelet terminals, giving a secure and reliable fit suitable for automotive, marine, leisure and light industrial applications. A built in 30 A ATO blade fuse protects the circuit and helps safeguard both the wiring and connected equipment. The cable length is approximately 0.3 m, providing enough reach for neat routing while keeping the installation tidy.

The indicator uses a simple three LED system to show the approximate battery state of charge. Green indicates 80 to 100 percent, orange indicates 60 to 80 percent and red indicates 40 to 60 percent. If none of the LEDs illuminate, the charge level has dropped below 40 percent and the battery should be recharged. This makes it a convenient tool for quick on site checks, especially in systems that are cycled frequently.

Designed for 12 V systems operating between 6 and 15 V, the device draws only around 0.9 mA, which means it will not noticeably reduce battery capacity over time. Its small housing, weather resistant construction and IP65 protection rating make it suitable for outdoor or demanding environments where reliability is important.

The Victron Battery Indicator Eyelet is compatible with Blue Smart IP65 and Blue Power IP65 chargers, giving installers a straightforward way to integrate visual charge indication into new or existing systems. It is particularly useful for vehicles, boats, backup systems and compact off grid setups where a simple and durable battery status solution is required.

Victron Battery Indicator Eyelet (M8 eyelet / 30A ATO fuse) – Manual
