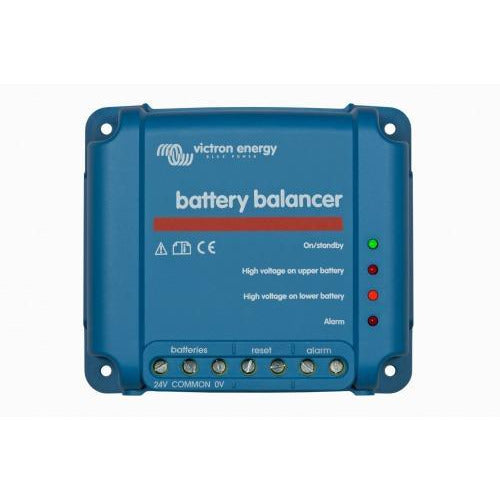

Victron Battery Balancer - BBA000100100
Victron Battery Balancer - BBA000100100
SKU:BBA000100100
Brand: Victron
In stock
This is pre-order - Available in 7 – 10 days
Couldn't load pickup availability
Product Details
Product Details
The Victron Energy BCD 402 2 Batteries 40A (Combiner Diode), is a reliable solution designed to ensure continuous DC power to mission-critical equipment by combining two DC power sources. This diode battery combiner allows two batteries to supply power in parallel, ensuring that failure of one source will not interrupt power to the critical load.
It is suitable for both 12V and 24V systems and features M6 bolt connections for secure and efficient installations. The device boasts a maximum continuous current of 40A, making it ideal for various applications.
Product Specifications
Product Specifications
Performance & Electrical Specifications
- Input Voltage Range: Up to 18 V per battery, 36 V total
- Turn-on Level: 27.3 V +/- 1%
- Turn-off Level: 26.6 V +/- 1%
- Current Draw (When Off): 0.7 mA
- Midpoint Deviation to Start Balancing: 50 mV
- Maximum Balancing Current: 0.7 A (when deviation > 100 mV)
- Alarm Trigger Level: 200 mV
- Alarm Reset Level: 140 mV
- Alarm Relay: 60 V / 1 A normally open
- Alarm Relay Reset: Two terminals available to connect a push button
- Over Temperature Protection: Yes
Environmental & Operating Specifications
- Operating Temperature: -30 to +50 °C
- Humidity (non-condensing): 95%
Mechanical Specifications (Enclosure)
- Colour: Blue (RAL 5012)
- Connection Terminals: Screw terminals 6 mm² / AWG10
- Protection Category: IP22
- Weight: 0.4 kg
- Dimensions (h x w x d): 100 x 113 x 47 mm

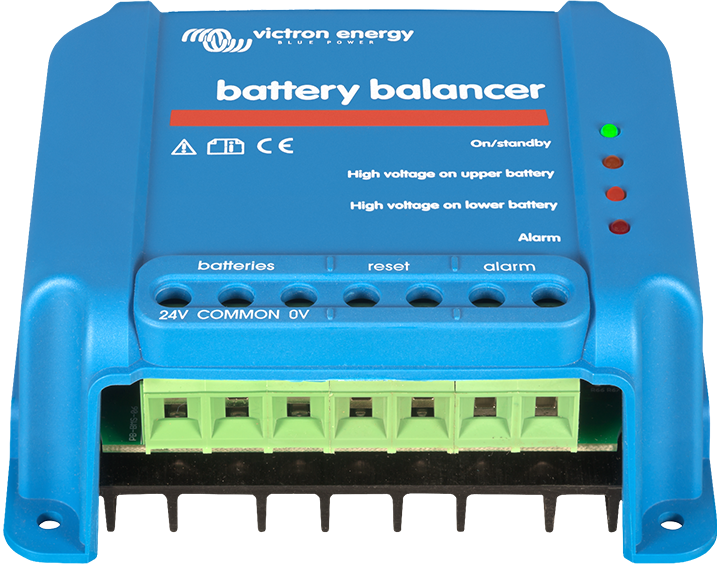

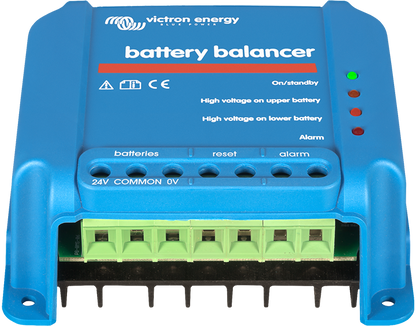

LED Indicators
- Green LED: Balancer is active (battery voltage > 27.3 V)
- Orange LED (Lower): Lower battery leg active (deviation > 0.1 V)
- Orange LED (Upper): Upper battery leg active (deviation > 0.1 V)
- Red LED: Alarm (deviation > 0.2 V). Remains on until deviation reduces to < 0.14 V or system voltage drops below 26.6 V.
Standards & Compliance
- Safety: EN 60950, CSA/UL 62368-1
- Emission: EN 61000-6-3, EN 55014-1
- Immunity: EN 61000-6-2, EN 61000-6-1, EN 55014-2
- Automotive Directive: EN 50498
Installation Requirements
- Mounting: Must be installed on a well-ventilated vertical surface close to (but not directly above) the batteries.
- Wiring: Use at least 0.75 mm² wire for negative, positive, and midpoint connections. For UL compliance, fuse wires near the batteries with a 10A DC-rated fuse.
- Scalability: For 48V systems, three balancers are used. Several balancers can be connected in parallel to manage large battery banks (typically one balancer per three parallel 200 Ah strings).
