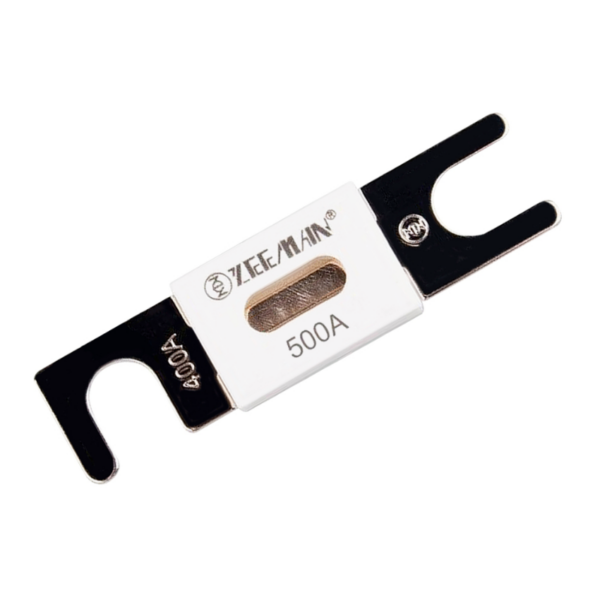

ANL-fuse 500A/80V for 48V products (1 pc)
ANL-fuse 500A/80V for 48V products (1 pc)
SKU:CIP142500000
Brand: Victron
High rating for trade use: Rated at 500 A current and 80 V voltage, built for robust protection in demanding 48 V applications.
Low resistance, high efficiency: Approximately 0.25 mΩ cold resistance and ~100 mV voltage drop ensure minimal power loss.
Superior short-circuit breaking capability: Bolt-down ANL fuse design offers better performance than many MEGA-fuse alternatives.
Trusted brand: Manufactured by Victron Energy, known internationally for high-quality DC distribution and protection components.
Perfect for 48 V systems: Especially suited to off-grid, marine, mobile and industrial DC-installations where 48 V power is used and fault protection is critical.
Dimensions: 10 × 20 × 81mm
Low stock: 4 left
Regular price
£5.00 GBP
Regular price
Sale price
£5.00 GBP
Quantity
Couldn't load pickup availability
Product Details
Product Details
The ANL-Fuse 500A/80V is designed to provide dependable overcurrent protection for 48V battery systems and associated DC equipment. Rated at 500A and 80V, this fuse safeguards your system from damage caused by excessive current. Sold as a single piece, it is compact, durable, and easy to install, making it ideal for off-grid solar, marine, and industrial 48V applications.
Key Features
- 500A High Current Protection: Ensures safety for 48V systems
- Reliable Overcurrent Safety: Protects batteries, inverters, and DC equipment
- Compact and Durable Design: Long-lasting construction for secure operation
- Easy Installation: Compatible with standard ANL fuse holders
- Single Piece: Sold individually for precise system sizing
- Versatile Applications: Suitable for off-grid solar, marine, and industrial systems
Applications
- Off-grid solar battery systems
- Marine and boat 48V systems
- Industrial and commercial 48V setups
- Battery banks and DC equipment protection
Product Specifications
Product Specifications
Electrical Specifications
- Current Rating: 500 A
- Voltage Rating: 80 V
- Approximate Voltage Drop: 100 mV
- Cold Resistance: 0.25 mΩ
Mechanical Specifications
- Fuse Type: ANL (Bolt-down)
- Mounting Hole Spacing (Center to Center): 60 mm
- Total Terminal Width: 22 mm
- Inner Terminal Width: 20 mm
- Slot/Fork Width: 11 mm
Compatibility & Installation
- Required Accessories: Designed for use with a dedicated Victron ANL fuse holder to ensure a secure and low-resistance connection.
- Application: Optimized for 48V DC products requiring high-current protection, such as large-scale MultiPlus or Quattro inverter-charger installations and main battery disconnects.
