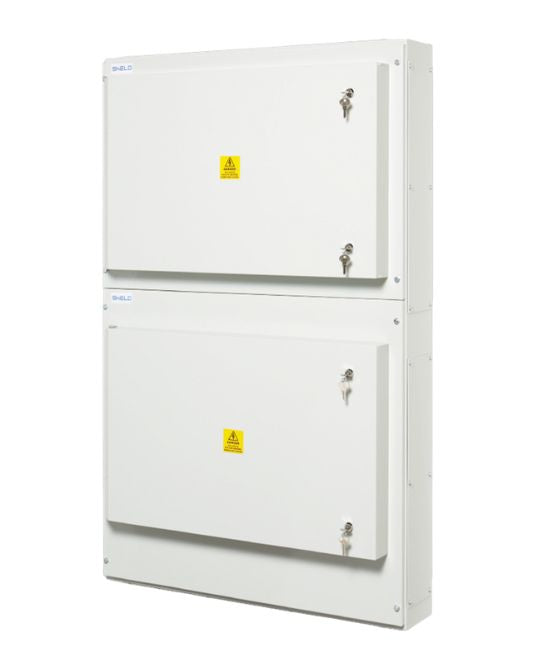

6 Way Panel Board (NXPB‑400/06B)
6 Way Panel Board (NXPB‑400/06B)
SKU:NXPB-400/06B
Brand: CHINT
Low stock: 3 left
Couldn't load pickup availability
Product Details
Product Details
The 6 Way Panel Board (Model: NXPB‑400/06B) is a heavy-duty electrical distribution solution designed for commercial and industrial environments that demand reliable power management. Built to strict industry standards, this panel board supports up to 400A and complies with IEC/EN 61439‑2:2011, giving you confidence in safety, durability and performance.
Crafted with a robust metal enclosure in classic RAL 7035 grey, this panel board is engineered for long-term use. It features six outgoing TP (three-phase) ways, providing space for multiple circuit breakers and future expansion while keeping installations neat and efficient.
Installation is simple and secure with wall-mount capability and clear internal spacing for outgoing device fitting. The board gives you flexible options for incoming devices, including isolators or MCCBs (Moulded Case Circuit Breakers), so it integrates seamlessly with your existing power system.
Rated for 415VAC at 50/60 Hz and offering a protection degree of IP3X, this panel board helps protect circuits against dust ingress with doors closed and meets high-demand electrical distribution requirements. The unit also supports a rated insulation voltage of 690V and high fault-current withstand levels, making it suited to demanding electrical infrastructure.
Whether you are upgrading an existing installation or building a new distribution network, the CHINT 6 Way Panel Board NXPB‑400/06B delivers dependable performance with space for essential circuits while maintaining the quality and safety you expect.
Product Specifications
Product Specifications
Electrical Specifications
- Voltage Rating: 415VAC 50/60Hz
- Maximum Load: 400A
- Rated Insulation Voltage (Ui): 690V
- Rated Peak Withstand Current (Ipk): 105kA
- Short Circuit Withstand: 50kA/1s (Main Busbar)
- Incoming Device Options: 250A or 400A Isolator or MCCB
- Outgoing Capacity: 6 Way TP (Triple Pole)
- Outgoing Device Compatibility: Configured for 6 x 250A Frame Size MCCB/ELCB units (supports up to 200A TP)
Mechanical & Installation Data
- Construction: Robust Metallic Enclosure
- Protection Degree: IP3X
- Mounting: Wall Mountable
- Number of Ways: 6 Ways (TP)
- Modular Slots: 0 x 125A Frame Size slots / 6 x 250A Frame Size slots
- Finish: RAL 7035 (Light Grey)
Dimensions
- Width: 750mm
- Height: 1200mm
- Depth (Without Door): 210mm
- Depth (With Door): 220mm
- Minimum Door Opening Requirement: 840mm (width required for full door clearance)
Key Features
- UK Manufactured: Developed and produced in the United Kingdom to meet high-end industrial and commercial standards.
- Flexible Configuration: Offers expanded outgoing ways and multiple incoming options to suit complex modern electrical needs.
- Integrated Solutions: Designed to incorporate metering and RCD protection into a single, streamlined board.
- Accessory Compatibility: Supports a full range of extension boxes, cableways (NXPB-EXS01/6), and meterways (NXPB-EXS02/6) for customized installations.
- Certified Safety: Independently tested and certified to ensure reliable performance in demanding environments.
Standards & Compliance
- International Standard: IEC/EN 61439-2:2011 (Second Edition)
- Certification: Independently certified by world-class test houses.
