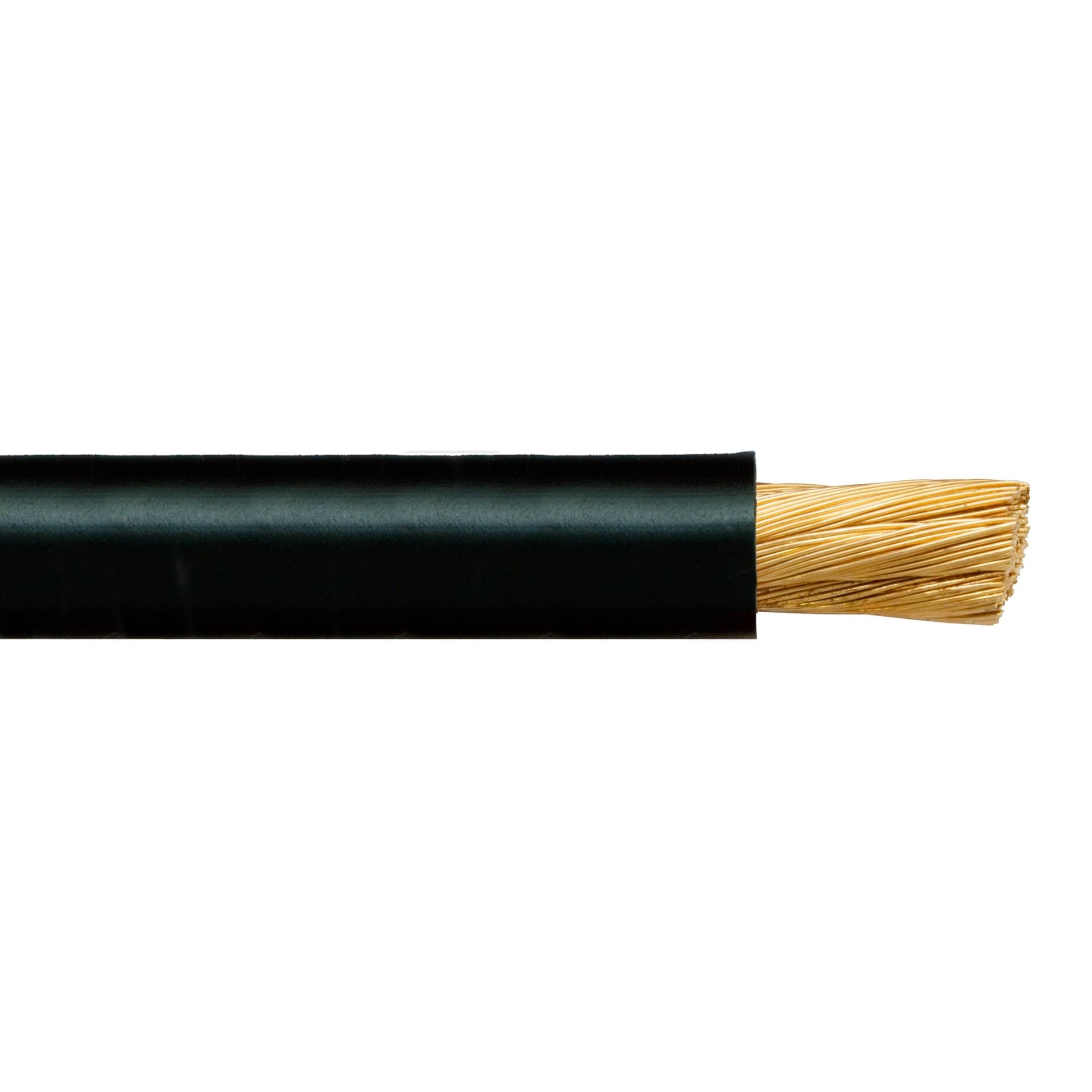

25mm² DC Cable Black - Per Meter

25mm² DC Cable Black - Per Meter

PVC25B

Brand: Guardian Automotive

High Performance: Rated for up to 170 Amps, making it suitable for various battery and starter motor applications. Superior Flexibility: The extra flexible PVC sheath ensures the cable is easy to handle and install even in complex vehicle or boat layouts. Durable Construction: Built to meet the rigorous demands of automotive electrical systems, providing long-term reliability for battery and earth leads. Versatile Application: Ideal for use in power conversion systems, battery banks, and heavy-duty starter circuits.

37 in stock

£8.20 GBP
£8.20 GBP
Sale Sold out

Product Details

This 25 mm² black DC cable (SKU PVC25B) is built for high-current 12 V and 24 V systems. Its multi-stranded copper conductor delivers excellent flexibility and conductivity, making it well suited to large battery runs, inverter connections, and DC bus wiring. The premium PVC insulation is designed to withstand harsh environments: it resists petrol, lubricating oil, and diluted acids, making it a dependable choice for mobile, marine, and vehicle power systems.

Because the cable is sold by the metre, installers can purchase exactly the length required. That helps minimise waste and simplifies inventory management for trade projects. The black sheath indicates ground or negative polarity, helping with safe and organised routing in system builds.

Thanks to its generous cross-section, the cable supports significant current loads, making it appropriate for demanding power delivery tasks. This is a professional-grade cable optimised for use with battery banks, inverters, MPPT controllers, or any setup where robust DC wiring is needed.

Product Specifications

Technical Specifications

  • SKU: PVC25B
  • Conductor: 322/0.30
  • Cross Sectional Area: 25mm²
  • Current Rating: 170 Amps
  • Sheath Colour: Black
  • Core Diameter: 5.6mm
  • Outer Sheath Diameter: 10.1mm
  • Cable Type: Extra Flexible PVC Battery and Starter Cable

Related Components

  • Compatible Terminals: Designed for use with 25mm² copper tube terminals (e.g., 25-6T or S25-10T).
  • Recommended Tooling: Requires a professional crimping tool suitable for 25mm² cable.
