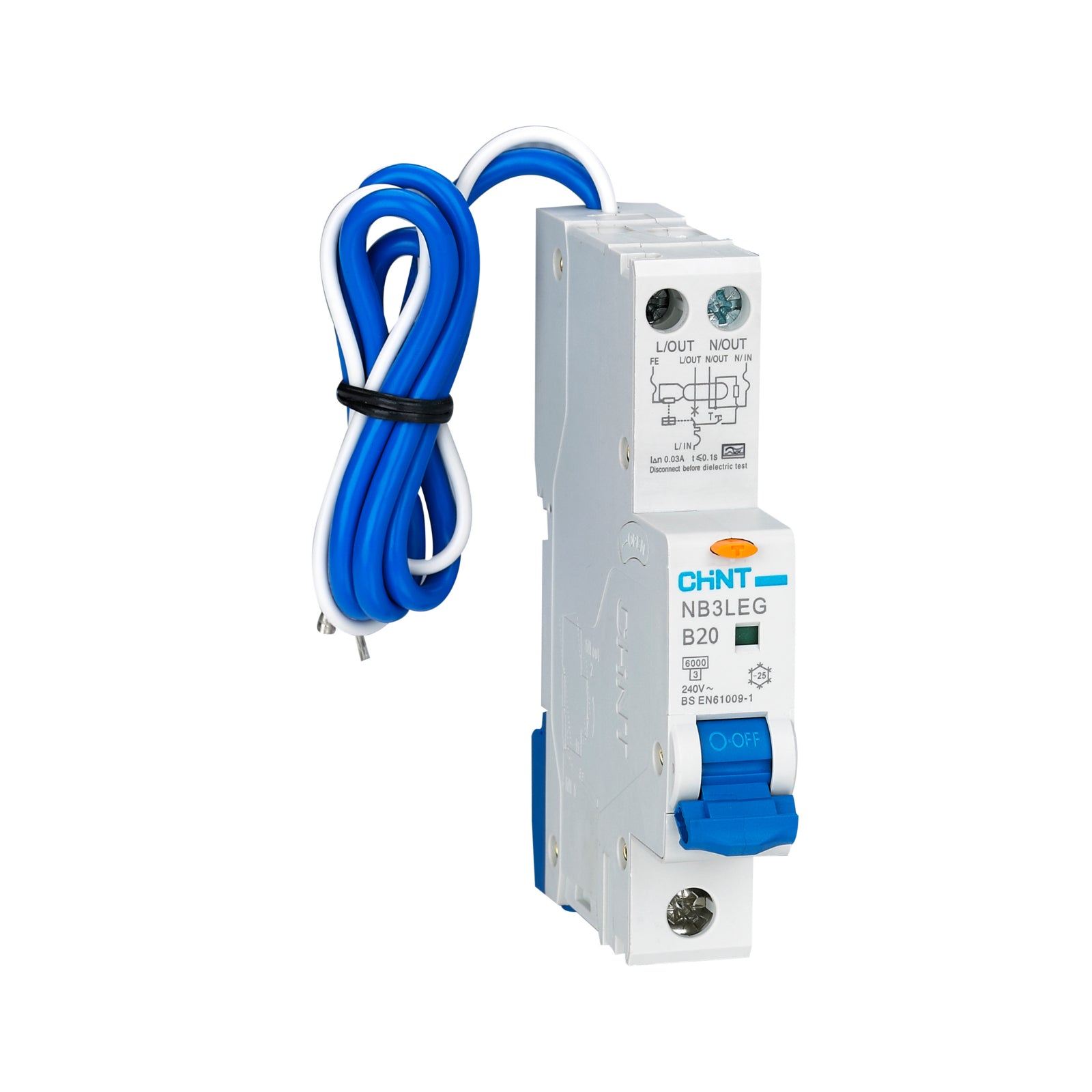

20A B Curve 30mA A Type 6KA 1P+N RCBO (NB3LEG-B20)
20A B Curve 30mA A Type 6KA 1P+N RCBO (NB3LEG-B20)
SKU:NB3LEG-B20
Brand: CHINT
In stock
This is pre-order - Available in 7 – 10 days
Couldn't load pickup availability
Product Details
Product Details
The 20A B Curve 30mA A Type 6KA 1P+N RCBO (Model: NB3LEG-B20) from CHINT provides dependable protection for modern electrical installations. It combines over-current and residual current protection in a single compact unit, helping to keep people and property safe from electrical faults.
Rated at 20 amps, this RCBO is ideal for general lighting and socket circuits. The B Curve tripping characteristic ensures reliable performance on circuits with moderate inrush currents, while the 30mA residual current sensitivity offers essential personal protection against electric shock.
With a Type A residual current design, the NB3LEG-B20 can detect both AC and pulsating DC leakage currents. This makes it suitable for use with modern appliances and electronic equipment commonly found in homes and small commercial settings.
The unit features a 6kA short-circuit breaking capacity, delivering strong fault protection in demanding conditions. Its 1P+N configuration saves space inside consumer units, making it a practical choice where panel space is limited.
Manufactured to recognised safety standards, this RCBO is built for long-term reliability. It mounts easily onto a standard 35mm DIN rail, allowing for straightforward installation and maintenance.
Whether you are upgrading an existing consumer unit or fitting out a new installation, the CHINT NB3LEG-B20 RCBO offers a trusted, all-in-one solution for circuit protection.
Product Specifications
Product Specifications
Electrical Specifications
- Rated Current (In): 20A
- Number of Poles: 1P+N
- Tripping Curve: B Curve (3-5 In)
- Residual Current Type: Type A
- Rated Sensitivity (IΔn): 30mA (0.03A)
- Rated Voltage (Ue): 240V AC
- Rated Frequency: 50Hz
- Rated Short-circuit Capacity (Icn): 6,000A (6kA)
- Rated Residual Making and Breaking Capacity (IΔm): 3,000A
- Insulation Voltage (Ui): 500V
- Rated Impulse Withstand Voltage (Uimp): 4,000V
- Break Time under IΔn: ≤ 0.1s
- Energy Limiting Class: 3
- Release Type: Thermo-magnetic
Mechanical & Installation Data
- Mounting: 35mm DIN Rail (EN 60715) via fast clip device
- Terminal Connection Type: Cable / U-type busbar / Pin-type busbar
- Connection Direction: From top
- Terminal Size (Cable): Up to 10mm² (18-8 AWG)
- Terminal Size (Busbar): Up to 16mm² (18-5 AWG)
- Tightening Torque: 2.0 N·m (18 In-lbs)
- Electrical Life: 2,000 operations
- Mechanical Life: 2,000 operations
- Protection Degree: IP20
- Contact Position Indicator: Yes (Visual status window)
- Pollution Degree: 2
Environmental Specifications
- Ambient Operating Temperature: -5°C to +40°C (Daily average ≤ 35°C)
- Storage Temperature: -25°C to +70°C
- Reference Temperature for Tripping: 30°C
Key Features
- Space-Saving Design: Occupies only a single-module width (18mm) to maximize available space within consumer units and distribution boards.
- Type A Safety: Engineered to handle the residual current profiles of modern electronic equipment, including computer power supplies and LED lighting drivers.
- Complete Protection: Provides robust protection against overloads, short circuits, and earth leakage faults, significantly reducing fire and shock hazards.
- B-Curve Optimized: Specifically suited for the protection of people and long cable lengths in systems where low inrush currents are expected.
Standards & Compliance
- Primary Standard: BS EN 61009-1 / EN 61009-1
- EMC Standard: EN 61543
- Directives: Low Voltage Directive 2014/35/EU, EMC Directive 2014/30/EU
- Certification: CE Marked, Intertek Verified
