16A B Curve 30mA A Type 6KA 1P+N RCBO (NB3LEG-B16)
16A B Curve 30mA A Type 6KA 1P+N RCBO (NB3LEG-B16)
SKU:NB3LEG-B16
Brand: CHINT
Out of stock
Couldn't load pickup availability
Product Details
Product Details

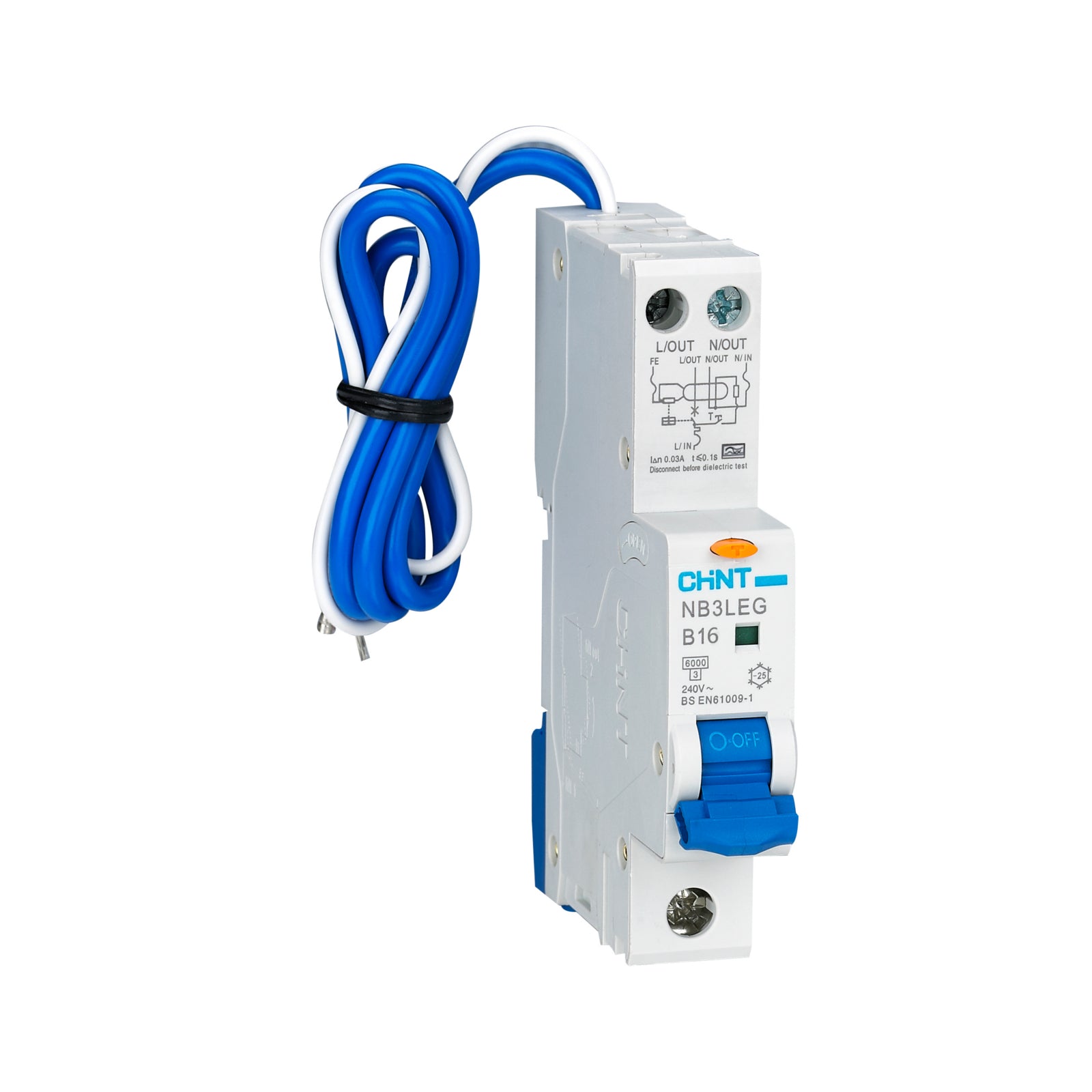

The CHINT NB3LEG-B16 RCBO provides dependable combined circuit and residual current protection in a compact format. Designed for domestic and light commercial electrical installations, it helps protect both people and property from electrical faults such as overloads, short circuits and earth leakage.
With a 16 amp current rating, this RCBO is suitable for everyday circuits powering lighting, sockets and general household appliances. The B curve tripping characteristic makes it ideal for standard resistive loads with low inrush currents, ensuring fast and reliable disconnection when faults occur.
This model features Type A residual current protection with a 30 milliamp sensitivity, allowing it to detect both alternating and pulsating DC leakage currents. This makes it well suited to modern electrical environments where appliances with electronic components are commonly used.
Built to perform under demanding conditions, the NB3LEG-B16 offers a 6 kiloamp short-circuit breaking capacity. This ensures the device can safely interrupt high fault currents, helping to prevent damage to wiring and connected equipment.
The 1 pole plus neutral (1P+N) configuration combines overcurrent and earth leakage protection in a single compact unit. It is designed for simple installation on standard DIN-rail systems, making it ideal for consumer units and distribution boards where space is limited.
Whether you are upgrading an existing system or installing new circuits, this CHINT RCBO delivers dependable protection, ease of installation and long-term reliability for a wide range of electrical applications.
Product Specifications
Product Specifications
Electrical Specifications
- Rated Current (In): 16A
- Number of Poles: 1P+N
- Tripping Curve: B Curve (3-5 In)
- Residual Current Type: Type A
- Rated Sensitivity (IΔn): 30mA (0.03A)
- Rated Voltage (Ue): 240V AC
- Rated Frequency: 50Hz
- Rated Short-circuit Capacity (Icn): 6,000A (6kA)
- Rated Residual Making and Breaking Capacity (IΔm): 3,000A
- Insulation Voltage (Ui): 500V
- Rated Impulse Withstand Voltage (Uimp): 4,000V
- Break Time under IΔn: ≤ 0.1s
- Energy Limiting Class: 3
- Release Type: Thermo-magnetic
Mechanical & Installation Data
- Mounting: 35mm DIN Rail (EN 60715) via fast clip device
- Terminal Connection Type: Cable / U-type busbar / Pin-type busbar
- Connection Direction: From top
- Terminal Size (Cable): Up to 10mm² (18-8 AWG)
- Terminal Size (Busbar): Up to 16mm² (18-5 AWG)
- Tightening Torque: 2.0 N·m (18 In-lbs)
- Electrical Life: 2,000 operations
- Mechanical Life: 2,000 operations
- Protection Degree: IP20
- Contact Position Indicator: Yes (Visual status window)
- Pollution Degree: 2
Environmental Specifications
- Ambient Operating Temperature: -5°C to +40°C (Daily average ≤ 35°C)
- Storage Temperature: -25°C to +70°C
- Reference Temperature for Tripping: 30°C
Key Features
- Space-Saving Design: Occupies only a single-module width (18mm) to maximize available space within consumer units and distribution boards.
- Type A Safety: Engineered to handle the residual current profiles of modern electronic equipment, including computer power supplies and LED lighting drivers.
- Complete Protection: Provides robust protection against overloads, short circuits, and earth leakage faults, significantly reducing fire and shock hazards.
- B-Curve Optimized: Specifically suited for the protection of people and long cable lengths in systems where low inrush currents are expected.
Standards & Compliance
- Primary Standard: BS EN 61009-1 / EN 61009-1
- EMC Standard: EN 61543
- Directives: Low Voltage Directive 2014/35/EU, EMC Directive 2014/30/EU
- Certification: CE Marked, Intertek Verified
