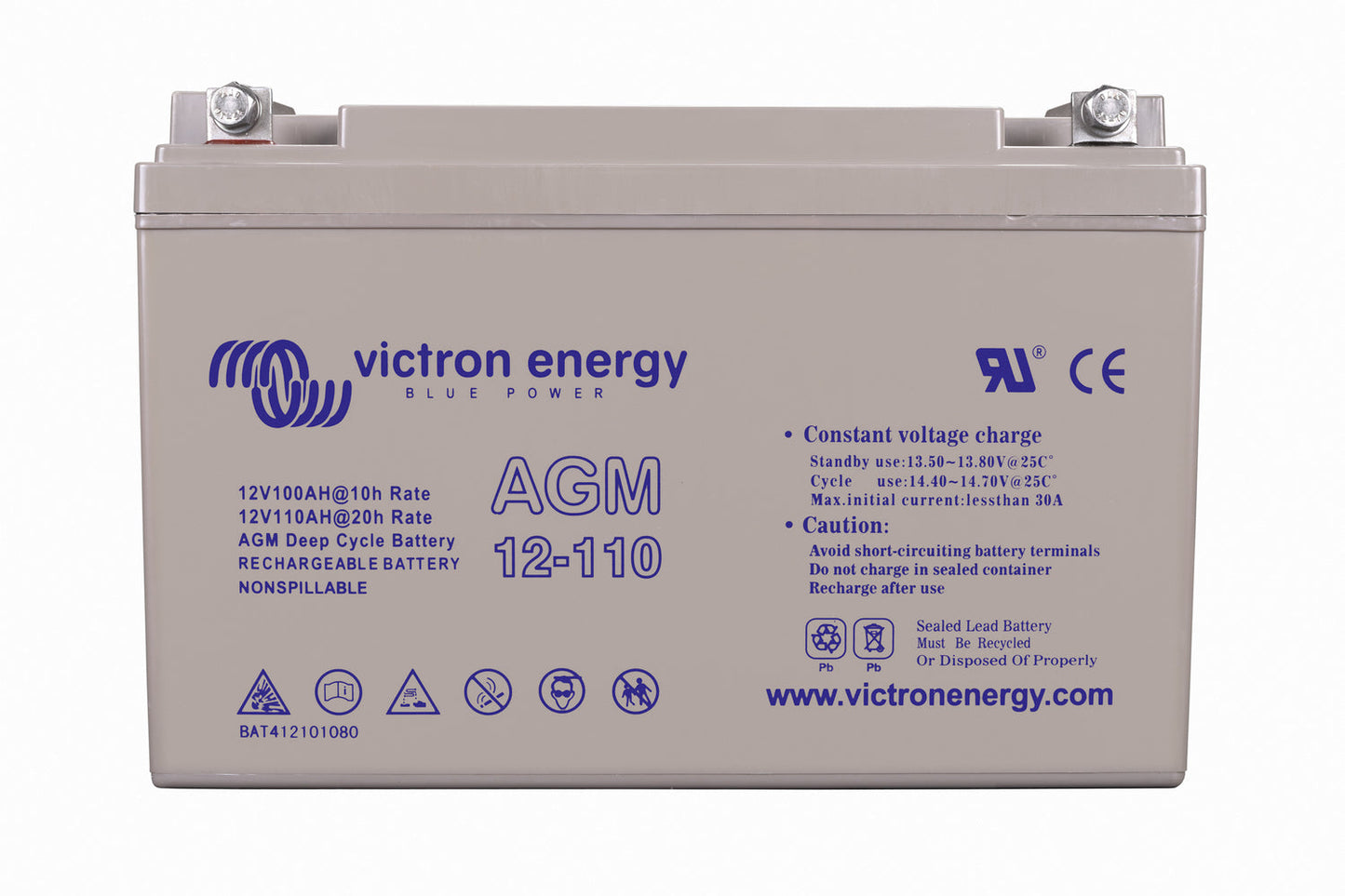

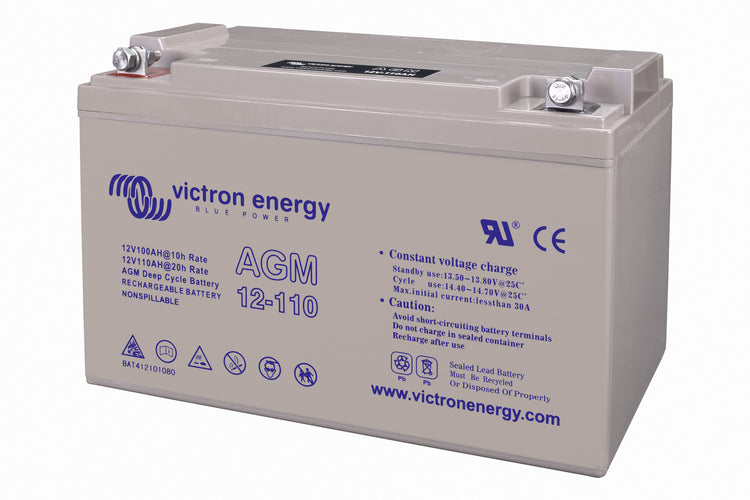

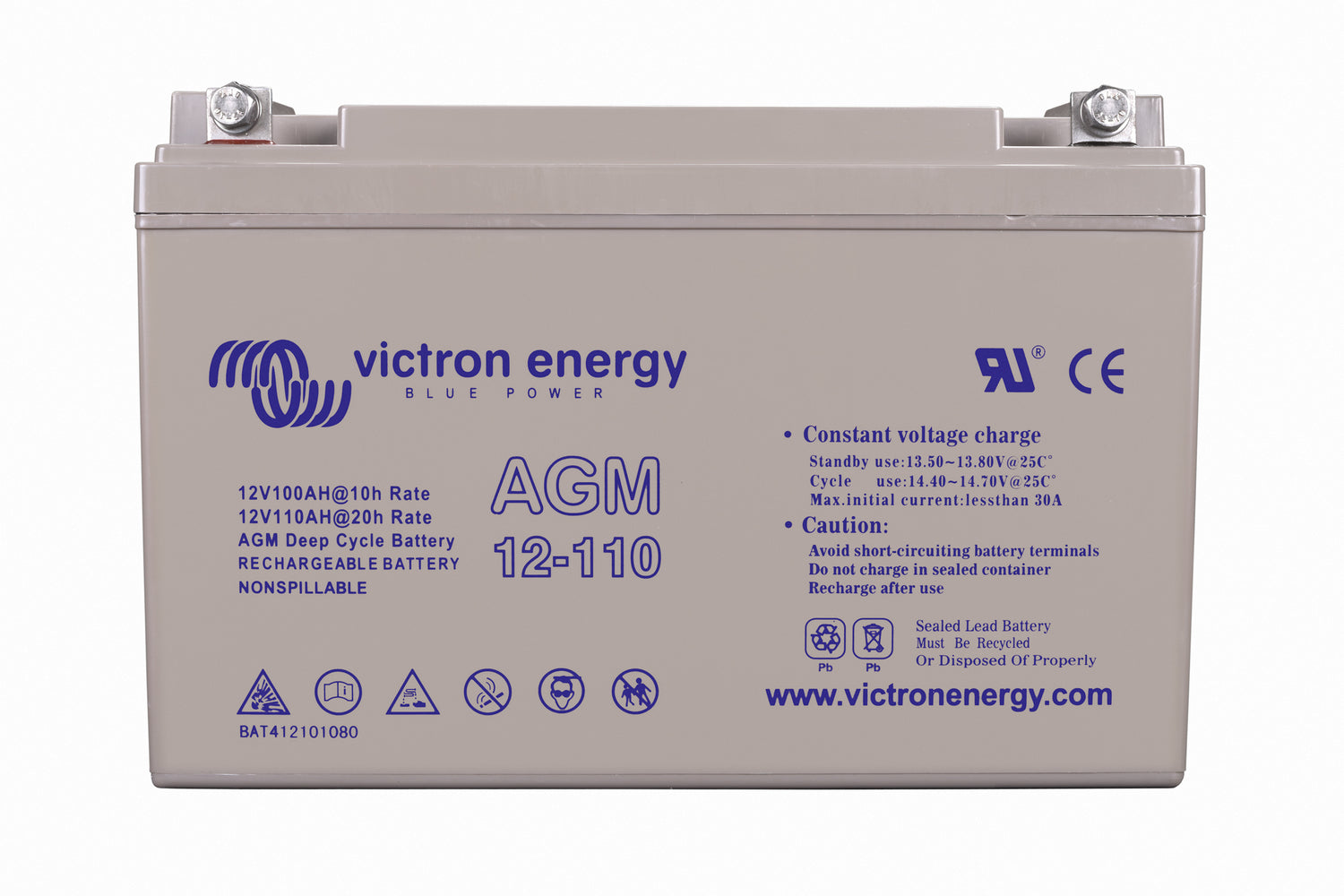

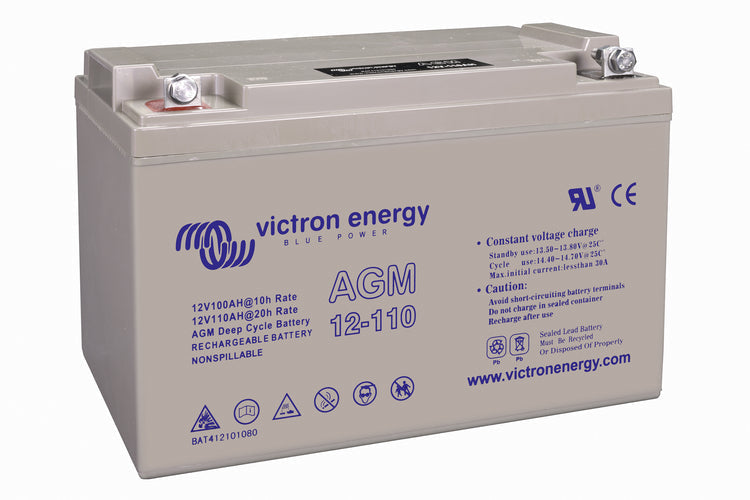

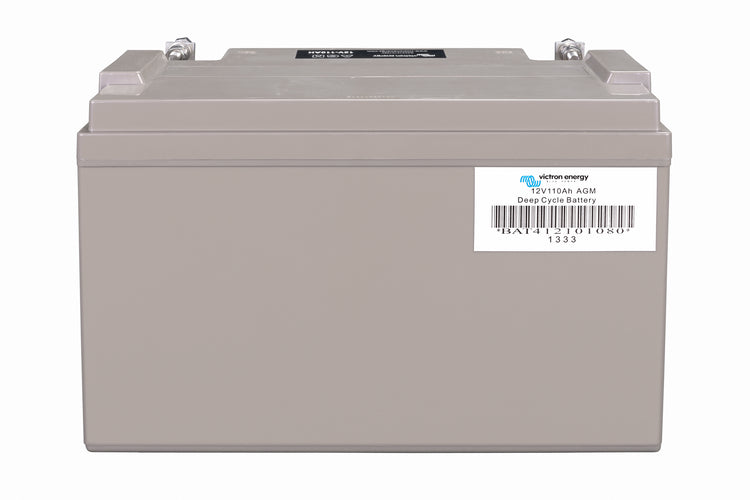

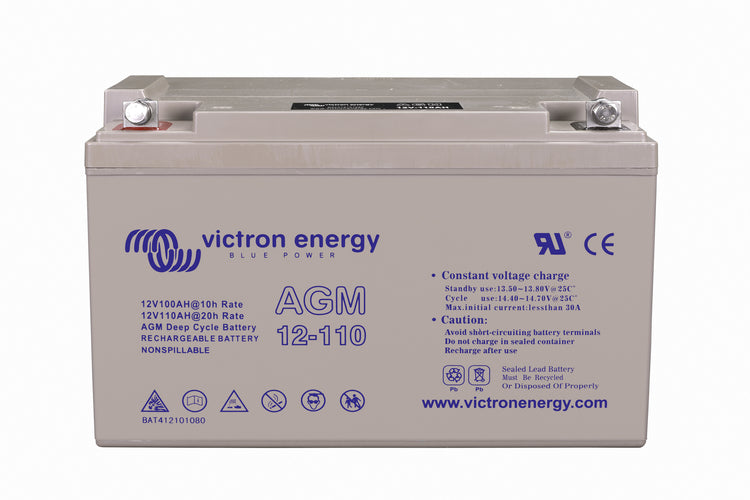

Victron 110Ah AGM Dual Purpose 12V - Deep Cycle Battery

Electrical Specifications

• Nominal Voltage: 12 V
• Rated Capacity (20 hr discharge @ 25°C): 110 Ah
• Cold Cranking Amps (CCA @ 0°F): 500 A
• Reserve Capacity (RES CAP @ 80°F): 170 minutes
• Technology: Flat plate AGM
• Terminals: Copper

Charging Specifications

• Absorption Voltage (Normal): 14.2 V – 14.6 V
• Absorption Voltage (Fastest Recharge): 14.6 V – 14.9 V
• Float Voltage: 13.5 V – 13.8 V
• Storage Voltage: 13.2 V – 13.5 V
• Recommended Charge Current: Should preferably not exceed 0.2 C (22 A for this 110 Ah model) to prevent temperature increases of more than 10°C.
• Temperature Compensation: -24 mV/°C (required if temperature is expected to be below 10°C or above 30°C for long periods).

Design Life & Performance

• Float Design Life: 7 – 10 years at 20°C
• Cycle Design Life (80% Discharge): 400 cycles
• Cycle Design Life (50% Discharge): 600 cycles
• Cycle Design Life (30% Discharge): 1500 cycles
• Low Temperature Performance: Capacity reduces at low temperatures (e.g., approximately 65% capacity available at 1 hour discharge rate).
• Self-Discharge: Very low; can be stored for long periods without requiring frequent recharging.

Mechanical Specifications

• Dimensions (L x W x H): 330 x 171 x 220 mm
• Weight: 32 kg

Key Features

• VRLA Technology: Valve Regulated Lead Acid (VRLA) design means the battery is maintenance-free and spill-proof, as gas is recombined internally during charging.
• Engine Starting Capability: Excellent high-current performance makes this AGM battery suitable for dual-purpose use, including starting applications.
• Battery Safe Mode: Compatible with Victron adaptive charging to prevent damage from excessive gassing during the bulk stage.
• Storage Mode: Specifically designed to reduce the rate of positive plate corrosion when the battery is not in use.
