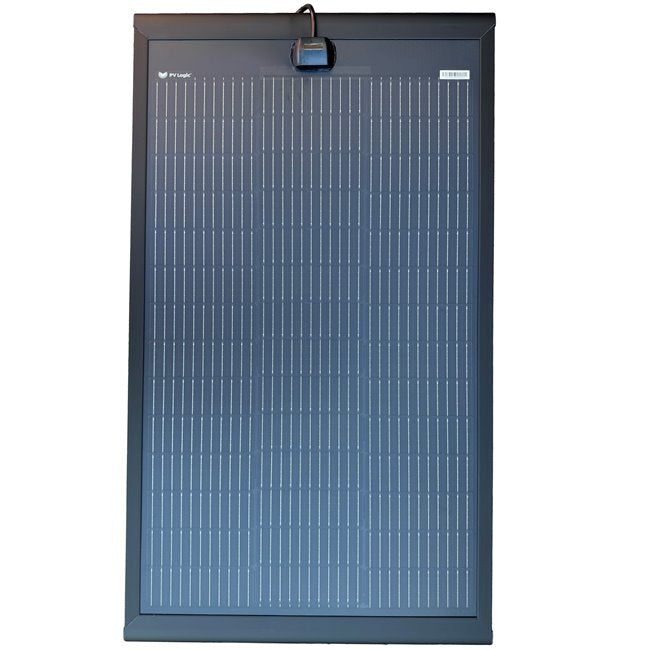

100W SlimEdge Lightweight Rigid Solar Panel

100W SlimEdge Lightweight Rigid Solar Panel

STPT100

Brand: Solar Technology

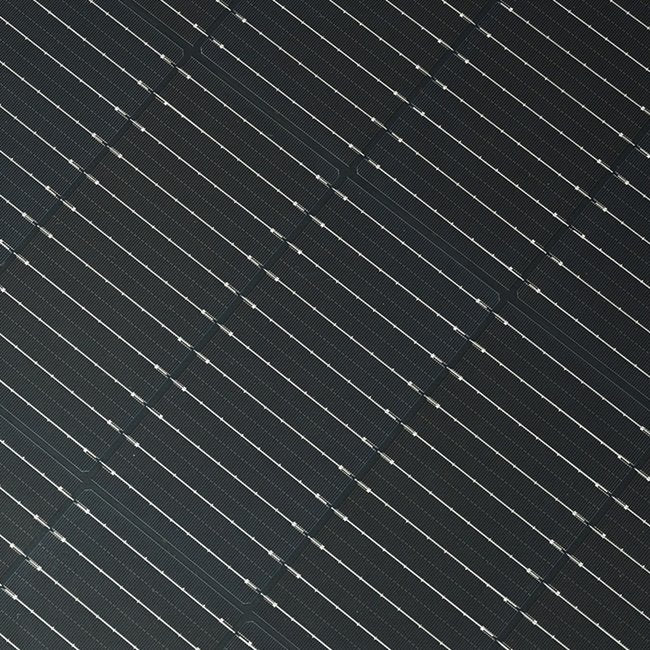

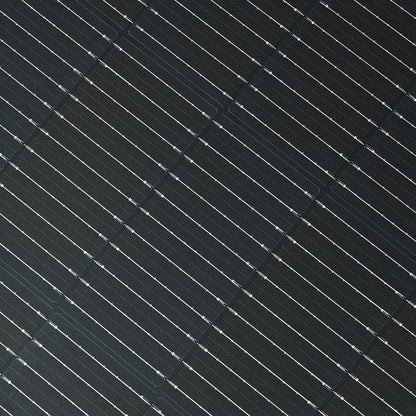

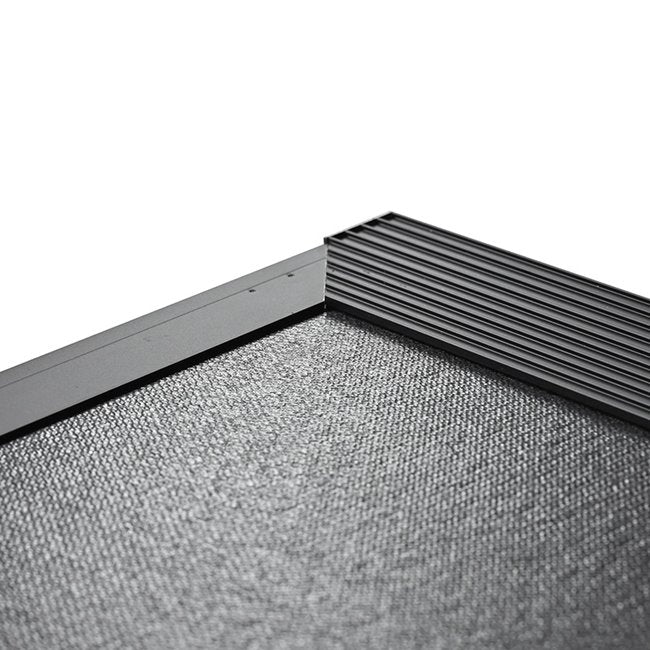

High Efficiency: Features superior shingled monocrystalline solar cells to deliver more power per square inch. Sleek & Lightweight: Engineered with a lightweight frame and discreet inbuilt fixing brackets, significantly reducing weight compared to conventional panels. Shade Tolerance: Integrated bypass diodes help maintain reliable power output even in partially shaded conditions. Advanced Construction: Built with a specialized 5-layer design, including a CPC top layer, EVA/POE protection, and a composite backplane for maximum durability. Robust Design: Features a sturdy black anodised aluminium frame that is both aesthetically pleasing and water-resistant for harsh outdoor environments. Dimensions: 1080 x 620 x 12mm Weight: 3.7kg

Low stock: 4 left

£208.34 GBP
£208.34 GBP
Sale Sold out

Product Details

The 100W SlimEdge is an ultra-light, rigid solution designed for effortless installation and maximum efficiency.

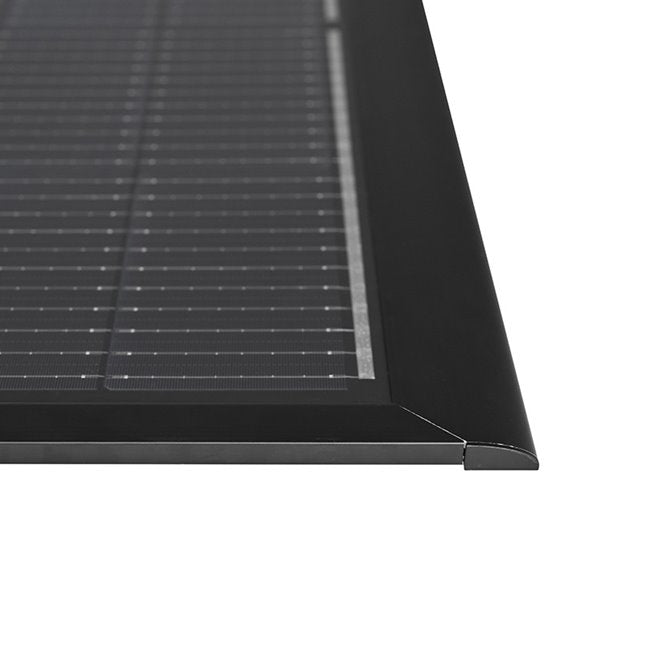

Using advanced shingled monocrystalline cells, it generates more power per square inch while weighing up to 50% less than traditional rigid panels. The durable anodised aluminium frame with discreet inbuilt fixing brackets ensures strength, easy mounting and a sleek finish.

Engineered for motorhomes, campervans, boats and off-grid systems, SlimEdge maintains dependable performance even in partial shade thanks to integrated bypass diodes. Backed by a 10-year warranty, it combines modern design with long-lasting reliability.

Dimensions: 1080 x 620 x 12mm

Product Specifications

Technical Specifications

  • SKU: STPT100
  • Peak Power (Pmax): 100W
  • Nominal Voltage (Vmp): 24.4V
  • Nominal Current (Imp): 4.1A
  • Open Circuit Voltage (Voc): 28.5V
  • Short Circuit Current (Isc): 4.3A
  • Dimensions: 1080mm x 620mm x 12mm (Note: Junction box adds 20mm to clearance height)
  • Weight: 3.7kg
  • IP Rating: IP67
  • Typical Daily Yield (Watts): 600W (Based on 6 hours of average peak sunlight)
  • Typical Daily Yield (Amp Hours): 24.6A (Based on 6 hours of average peak sunlight)

Installation & Equipment

  • Cable Connectivity: Supplied with 3m of cable as standard for easy integration.
  • Mounting: Can be installed on flat surfaces, vehicle roofs, or boat decks using the inbuilt brackets and suitable elastic adhesive.
  • Recommended Controller: A minimum 10A charge controller is required to protect the battery from overcharging and reverse current drain.

Warranty

  • Panel Warranty: 10-year manufacturer's warranty for long-term performance peace of mind.

100W SlimEdge Lightweight Rigid Solar Panel – Data Sheet

Solar Wattage 100W
Weight KG 3.7
