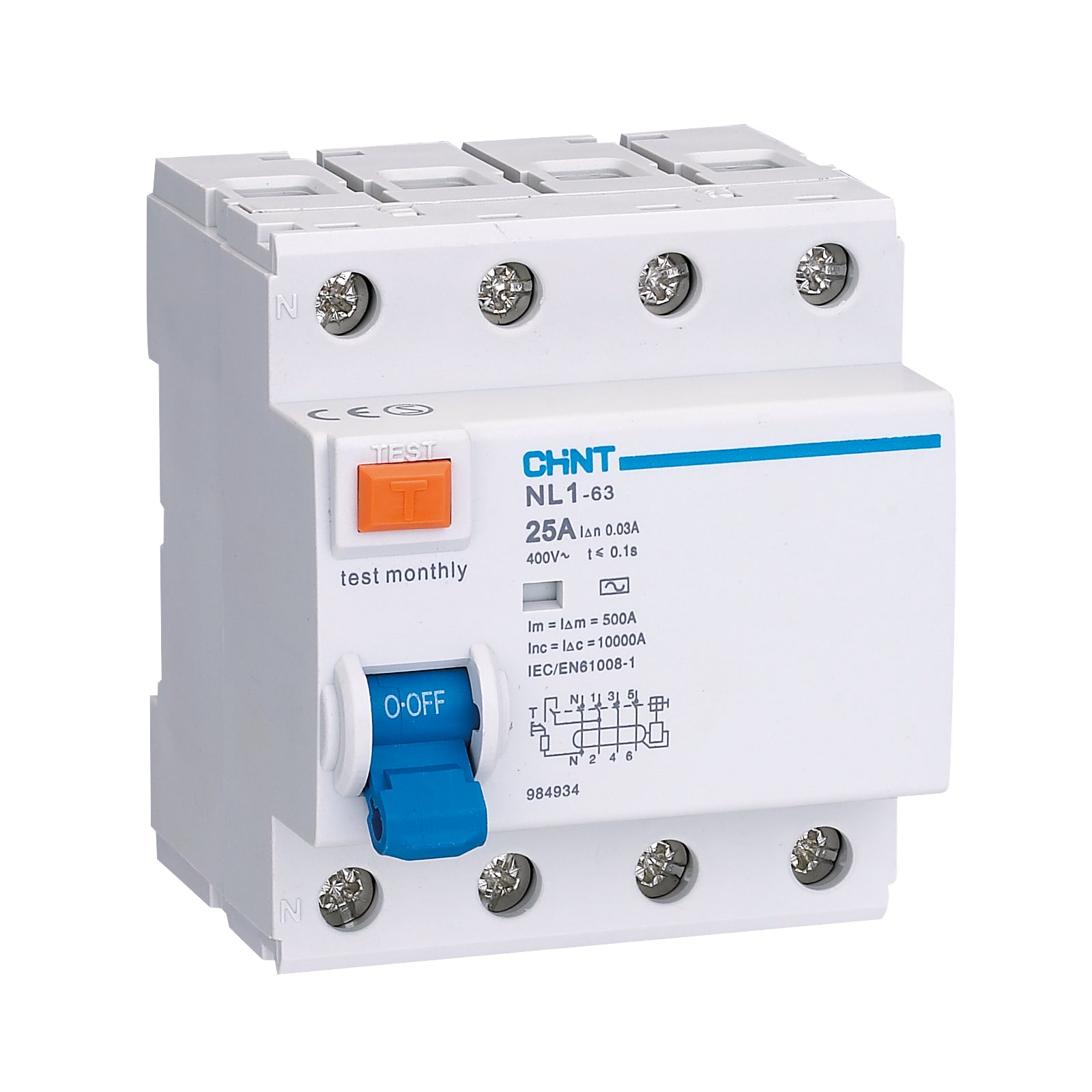

100A 4 Pole 100mA Type A Time Delayed RCD (NL1‑100‑4100/100‑S)
100A 4 Pole 100mA Type A Time Delayed RCD (NL1‑100‑4100/100‑S)
SKU:NL1-100-4100/100-s
Brand: CHINT
Low stock: 10 left
Couldn't load pickup availability
Product Details
Product Details
The CHINT 100A 4 Pole 100mA Type A Time Delayed RCD (SKU NL1‑100‑4100/100‑S) is a robust residual current device designed to protect electrical systems from earth leakage faults while providing discrimination in multi‑RCD installations. It features a 100 ampere current rating and 100mA tripping sensitivity, making it ideal as an upstream protective device in three‑phase distribution boards, workshops, commercial installations, and larger domestic panels where selective coordination is required.
Built to meet recognised safety standards, this RCD incorporates a time delayed Type A characteristic that helps prevent nuisance trips from transient currents and ensures downstream devices operate first on fault conditions. The four pole design provides complete protection for all lines in three‑phase circuits plus neutral, giving full circuit security.
CHINT’s NL1 series RCDs are valued for their strong build quality and reliable performance. The device is DIN‑rail mountable for quick and secure installation into standard enclosures. With a compact profile and consistent performance, this RCD is a dependable choice for electrical professionals and DIY installers looking for a cost‑effective solution that does not compromise on safety.
Whether upgrading an existing panel or building a new distribution setup, this time delayed residual current device provides essential protection against earth faults and supports compliance with modern electrical safety requirements.
Product Specifications
Product Specifications
Electrical Specifications
- Rated Current (In): 100A
- Number of Poles: 4P
- Residual Current Type: Type A
- Tripping Sensitivity (IΔn): 100mA (0.1A)
- Tripping Time: Selective (Time Delayed) 150ms – 500ms
- Rated Voltage (Ue): 400V/415V AC
- Rated Frequency: 50/60Hz
- Insulation Voltage (Ui): 500V
- Rated Impulse Withstand Voltage (Uimp): 6000V
- Short-Circuit Current (Inc=IΔc): 6000A
- Residual Making and Breaking Capacity (IΔm): 1000A
Mechanical & Installation Data
- Mounting: 35mm DIN Rail (EN 60715) via fast clip device
- Terminal Connection Type: Cable / U-type busbar / Pin-type busbar
- Terminal Size (Top/Bottom): Up to 35mm²
- Tightening Torque: 2.5 N·m
- Connection Direction: Top and bottom
- Protection Degree: IP20
- Fault Current Indicator: Yes
- Electrical Life: 2,000 operations
- Mechanical Life: 2,000 operations
- Ambient Operating Temperature: -5°C to +40°C
- Pollution Degree: 2
Dimensions
- Width: 72mm (4 modules)
- Height: 86mm
- Overall Depth: 78.1mm
Standards & Compliance
- Primary Standard: IEC/EN 61008-1
- Directives: Low Voltage Directive 2006/95/EC
- Certifications: VDE Approved, CE Marked
Key Features
- Total Discrimination: Specifically designed as a selective "S Type" RCD to prevent "nuisance" tripping of the main breaker when a downstream fault occurs.
- Type A Versatility: Provides tripping for slowly increasing sinusoidal AC currents and pulsed DC residual currents, suitable for environments with complex electronic loads.
- Safety Monitoring: Equipped with an integrated fault current indicator for immediate identification of tripping cause.
- Flexible Installation: Features high-capacity terminals compatible with cables and various busbar types for secure and reliable electrical connections.
